09185067813 ,IDC Connector - Harting Technology Group

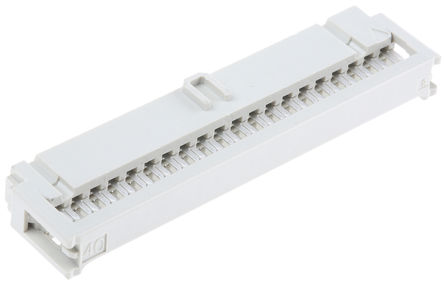

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

104 points

Part No

09185067813
Manufacturer

Harting Technology Group
ChipWorker Part#

CW16032840
Category

IDC Connector
Description

Plug; IDC; female; PIN:6; for ribbon cable; 1.27mm; Pin layout:2x3
Documentation

Datasheet
Ships from

Moscow
Наличие

116 pcs In Stock
Estimated Price

$ 1.07

Buy 09185067813

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

09185067813 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

09185067813 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	09185067813
Manufacturer	Harting Technology Group
ChipWorker Part#	CW16032840
Category	IDC Connector
Documentation	Datasheet
Number of Pins	6 Pin
Pin Pitch	2.54 mm
Number of Contacts	6 Contact
Gender	Female
Wire Gauge	26AWG ~ 28AWG
Contact Plating	Gold
Voltage Rating (AC)	350 V
Current Rating	1 A
Insulation Resistance	1000 MΩ
Number of Rows	2 Row
Flammability Rating	UL 94 V-0
Number of Positions	6 Position
Contact Resistance	20.0 mΩ
Number of Mating Cycles	50 Cycle
Current Rating (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating (Max)	320 V
Voltage Rating	320 V
Maximum Contact Resistance (Max)	20 mΩ
	expand all
Size-Height	14.5 mm
Color	Gray
Contact Material	Brass
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Similar & Replacement Parts

Similar products

Harting Technology Group

110 шт.

3.77 $/шт.

Product Description

**Harting SEK-18 Series 2.54mm Female IDC Connectors with Central Polarization**
SEK-18 Series 2.54mm female IDC connectors with central polarization available with up to 64 contacts. These SEK-18 cable mount IDC socket connectors are available with open or closed end covers and versions are available with a strain relief. Part numbers 0918xxxx7803 are 2.54mm IDC sockets with an open end cover and a class 3 performance level Part numbers 0918xxxx5803 are 2.54mm IDC sockets with an open end cover and an S4 (0.74μm) performance level Part numbers 0918xxxx6804 are 2.54mm IDC sockets with a closed end cover and a class 2 performance level Part numbers 0918xxxx7813 are 2.54mm IDC sockets with an open end cover, strain relief and a class 3 performance level Part numbers 0918xxxx5813 are 2.54mm IDC sockets with an open end cover, strain relief and an S4 (0.74μm) performance level
