0ZCG0075BF2B - BEL Fuse

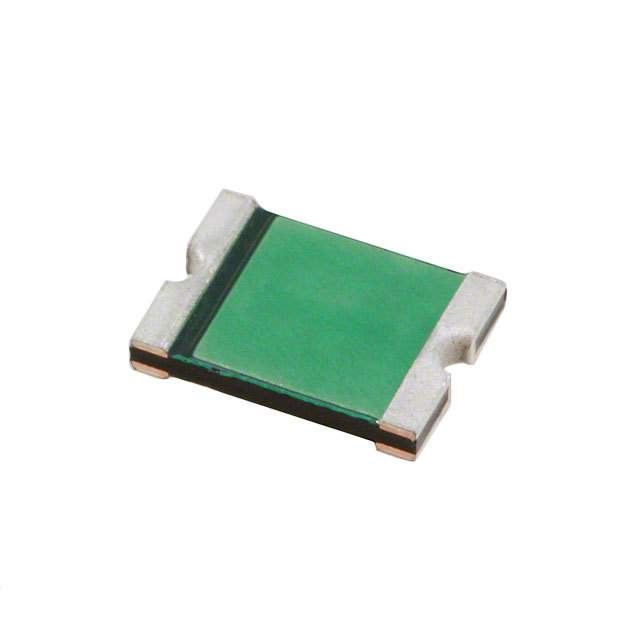

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

0ZCG0075BF2B
Manufacturer

BEL Fuse
ChipWorker Part#

CW5279363
Category

Fuse
Package

1812
Description

PTC Resettable Fuse 0.75A(hold) 1.5A(trip) 33VDC 40A 1W 0.2s 0.11Ω SMD Solder Pad 1812 T/R
Documentation

Datasheet

0ZCG0075BF2B Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

0ZCG0075BF2B Specifications

Attribute	Attribute Value

Part Number	0ZCG0075BF2B
Manufacturer	BEL Fuse
ChipWorker Part#	CW5279363
Category	Fuse
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package (SI)	4532
Case/Package	1812
Time to Trip	200 ms
Power Dissipation	1 W
Resistance	0.4 Ω
Holding Current	0.75 A
Trip Current	1.5 A
Current Rating (Max)	40 A
Holding Current (Max)	750 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	33 VDC
	expand all
Size-Length	4.5 mm
Size-Width	3.2 mm
Size-Height	1.55 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Resuming operation after a fuse burns out has never been more convenient with this 0ZCG0075BF2B PTC resettable fuse from Bel Fuse! This device has a maximum current rating of 40. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 4.73(Max) mm long, 1.55(Max) mm tall and 3.41(Max) mm deep.
