132-2801-010 ,Ribbon, Flat - Amphenol

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

73 points

Part No

132-2801-010
Manufacturer

Amphenol
ChipWorker Part#

CW51822643
Category

Ribbon, Flat
Package

100
Description

Twisted Pair Flat Cable 10Conductors 28AWG Tinned Copper Brown/Red/Orange/Yellow/Green/Blue/Violet/Gray/White/Black/Tan 300V 1A
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 126.92

Buy 132-2801-010

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

132-2801-010 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

132-2801-010 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	132-2801-010
Manufacturer	Amphenol
ChipWorker Part#	CW51822643
Category	Ribbon, Flat
Documentation	Datasheet
Case/Package	100
Pin Pitch	1.27 mm
Wire Gauge	28 AWG
Voltage Rating (DC)	300 V
Voltage Rating (AC)	300 V
Current Rating	1.00 A
Insulation Resistance	10.0 GΩ
Capacitance	49.2 pF
Shielding	No
Number of Conductors	10 Conductor
Current Rating (Max)	1 A
Operating Temperature (Max)	105 ℃
Voltage Rating (Max)	300 V
Voltage Rating	300 V
	expand all
Size-Length	100 ft
Size-Width	13.36 mm
Size-Height	1.06 mm
Size-Thickness	1.07 mm
Color	Black
Insulation Material	PVC
Conductor Material	Tinned Copper
Jacket Material	PVC
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HTS Code	8544493080
ECCN Code	EAR99

Similar & Replacement Parts

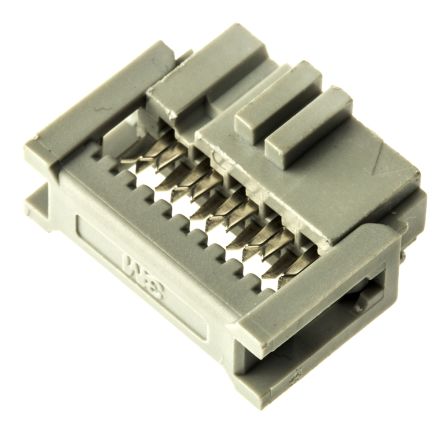

Similar products

Harting Technology Group

176 шт.

0.46 $/шт.

Product Description

The 132-2801-010 is a 10-core 5-pair unshielded twist N Flat Cable with tinned copper conductor and a PVC insulator. It combines the time saving of mass termination with the electrical performance of twisted pair, making it ideal for high speed communication equipment. Labour saving of up to 95% as compared to automatic strip and crimp termination are readily achieved. It consists of stranded round conductors insulated with colour coded PVC, twisted into pairs and laminated between layers of PVC film to form a planar cable. The twist in adjacent pairs is reversed to reduce cable crosstalk even further. Flat section can be made longer to allow room for multiple connectors. The lamination can be fabricated loose at specified points to provide easy access to individual conductors. It feature double-sided lamination provides excellent conductor strain relief and mass termination from either side of cable.
Twisted pairs for significant crosstalk reduction
100R Nominal single-ended impedance
15pF/ft at 1MHz Single-ended capacitance
1.6ns/ft Nominal propagation delay
