1EDI20I12AFXUMA1 - Infineon

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

1EDI20I12AFXUMA1
Manufacturer

Infineon
ChipWorker Part#

CW21751753
Category

FET Driver
Package

PG-DSO-8-51
Description

MOSFET DRVR 2A 1Out High Speed Inv/Non-Inv 8Pin DSO T/R
Documentation

Datasheet

1EDI20I12AFXUMA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

1EDI20I12AFXUMA1 Specifications

Attribute	Attribute Value

Part Number	1EDI20I12AFXUMA1
Manufacturer	Infineon
ChipWorker Part#	CW21751753
Category	FET Driver
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PG-DSO-8-51
Supply Voltage (DC)	3.50V (min)
Rise/Fall Time	10ns, 9ns
Number of Outputs	1 Output
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	400 mW
Fall Time (Max)	19 ns
Fall Time (Max)	20 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	400 mW
Supply Voltage (Max)	15 V
Supply Voltage (Min)	3.5 V
	expand all
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

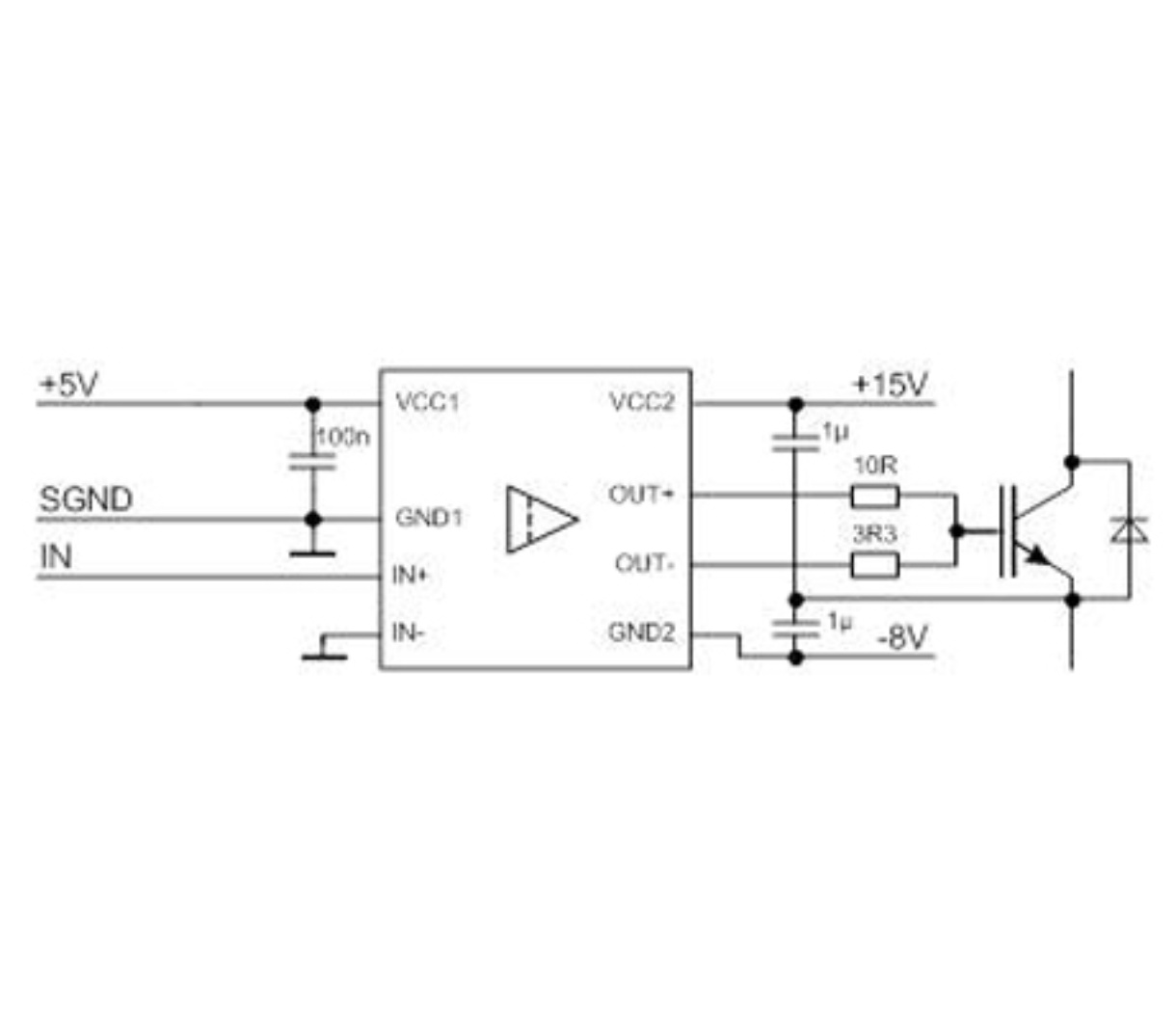

The 1EDI20I12AFXUMA1 is a 1EDI EiceDRIVER compact separate output variant for IGBT in 8 pin DSO package. This galvanically isolated single channel IGBT driver provides minimum output currents up to 6A at separated output pins. The input logic pins operate on a wide input voltage range from 3V to 15V using CMOS threshold levels to support even 3.3V microcontroller. The data transfer across isolation barrier is realized by coreless transformer technology. It is used in AC and brushless DC motor drives, high voltage DC/DC converter and DC/AC-inverter, induction heating resonant application, UPS-systems, welding and solar.
Input to output isolation voltage up to 1200V
4.1A typical peak current at rail to rail outputs
For high voltage power IGBTs
Suitable for operation at high ambient temperature range from -40°C to 125°C
Switching frequency of 1MHz
High level output peak current (source) is 4A at IN+ = high, IN- = low, VVCC2 = 15V
Low level output peak current (sink) is 3.5A at IN+ = Low, IN- = Low, VVCC2 = 15V
