1N1188 - GeneSiC Semiconductor

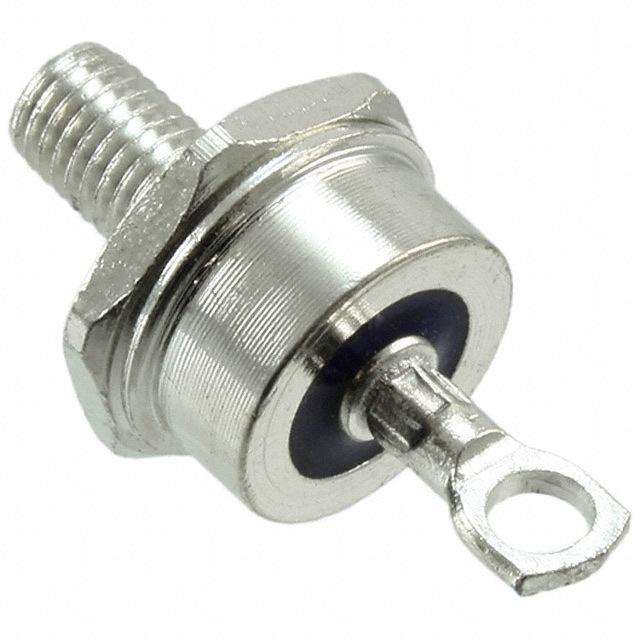

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

1N1188
Manufacturer

GeneSiC Semiconductor
ChipWorker Part#

CW34730800
Category

Power Diode
Package

DO-5
Description

Diode Switching 400V 35A 2Pin DO-5
Documentation

Datasheet

1N1188 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

1N1188 Specifications

Attribute	Attribute Value

Part Number	1N1188
Manufacturer	GeneSiC Semiconductor
ChipWorker Part#	CW34730800
Category	Power Diode
Documentation	Datasheet
Mounting Style	Chassis
Number of Pins	2 Pin
Case/Package	DO-5
Forward Voltage	1.2V @35A
Forward Current	35 A
Maximum Forward Voltage (Max)	1.2 V
Forward Current (Max)	35000 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	expand all
Operating Temperature	140 ℃
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
