1N3070TR - ON Semiconductor

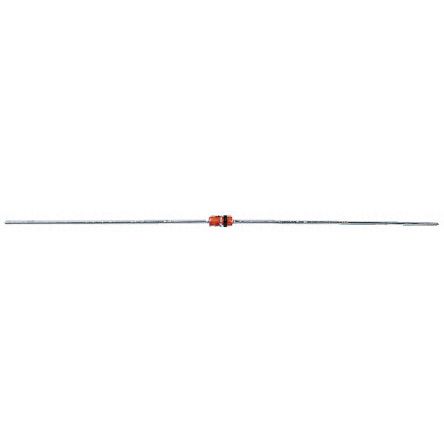

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

1N3070TR
Manufacturer

ON Semiconductor
ChipWorker Part#

CW41323557
Category

Schottky Diode
Package

DO-35
Description

High Conductance Fast Diode
Documentation

Datasheet

1N3070TR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

1N3070TR Specifications

Attribute	Attribute Value

Part Number	1N3070TR
Manufacturer	ON Semiconductor
ChipWorker Part#	CW41323557
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-35
Number of Positions	2 Position
Forward Voltage	1 V
Power Dissipation	500 mW
Thermal Resistance	300℃/W (RθJA)
Reverse recovery time	50 ns
Forward Current	500 mA
Max Forward Surge Current (Ifsm)	4 A
Maximum Forward Voltage (Max)	1 V
Forward Current (Max)	500 mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
Power Dissipation (Max)	500 mW
	expand all
Size-Height	4.56 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free

Product Description

Applications
---
This product is general usage and suitable for many different applications.
