1N4149 ,Small Signal Diode - Fairchild

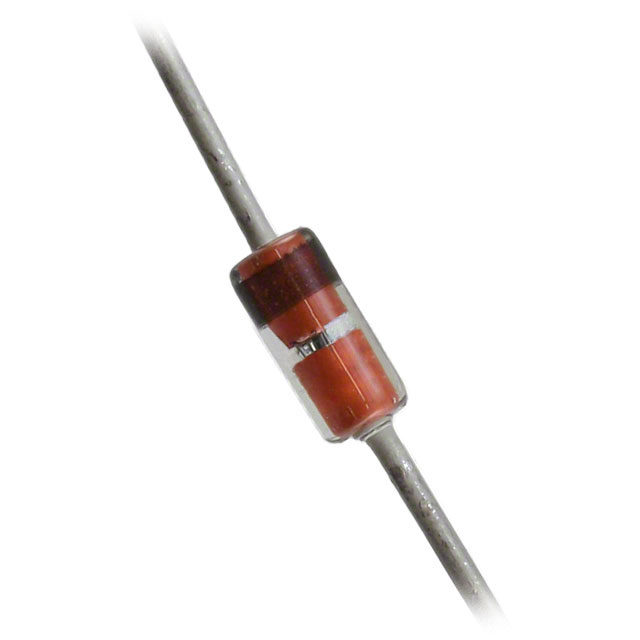

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

92 points

Part No

1N4149
Manufacturer

Fairchild
ChipWorker Part#

CW27336560
Category

Small Signal Diode
Package

DO-204AH
Description

FAIRCHILD SEMICONDUCTOR 1N4149 Small Signal Diode, Single, 100V, 500mA, 1V, 4ns, 4A
Documentation

Datasheet
Ships from

Moscow
Наличие

530836 pcs In Stock
Estimated Price

$ 0.01

Buy 1N4149

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

1N4149 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

1N4149 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	1N4149
Manufacturer	Fairchild
ChipWorker Part#	CW27336560
Category	Small Signal Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-204AH
Voltage Rating (DC)	100 V
Current Rating	300 mA
Capacitance	2.00 pF
Output Current	≤500 mA
Number of Positions	2 Position
Forward Voltage	1V @10mA
Polarity	Standard
Power Dissipation	500 mW
Reverse recovery time	4 ns
Forward Current	500 mA
Max Forward Surge Current (Ifsm)	4 A
Maximum Forward Voltage (Max)	1 V
Forward Current (Max)	0.5 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
Power Dissipation (Max)	500 mW
	expand all
Size-Length	4.56 mm
Size-Width	1.91 mm
Size-Height	1.91 mm
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The 1N4149 is a 2-pin high conductance fast Small Signal Diode offers the best available combination of quality. It is optimized for energy-efficient designs and offers high reverse voltage (200V). This product is general usage and suitable for many different applications.
