1N5225B - ON Semiconductor

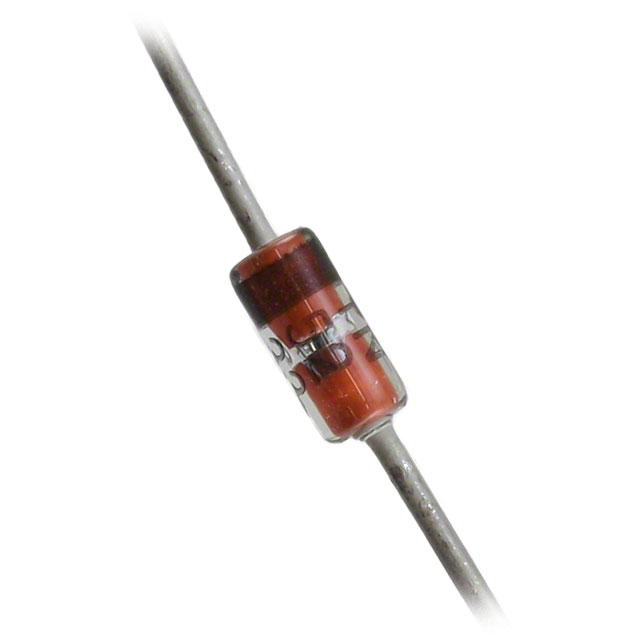

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

1N5225B
Manufacturer

ON Semiconductor
ChipWorker Part#

CW50071584
Category

Zener Diode, Zener
Package

DO-35
Description

1N5225 Series 0.5W(1/2W) 3V 200mA Through Hole Zener Diode - DO-35
Documentation

Datasheet

1N5225B Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

1N5225B Specifications

Attribute	Attribute Value

Part Number	1N5225B
Manufacturer	ON Semiconductor
ChipWorker Part#	CW50071584
Category	Zener Diode, Zener
Documentation	Datasheet
Number of Pins	2 Pin
Case/Package	DO-35
Capacitance Tolerance	±5 %
Number of Positions	2 Position
Forward Voltage	1.2 V
Power Dissipation	500 mW
Test Current	20 mA
Zener Voltage	3 V
Input Power (Max)	500 mW
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	500 mW
	expand all
Operating Temperature	-65℃ ~ 200℃
Product Lifecycle Status	Unknown
Packaging	Bag
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free

Product Description

General Data Applicable to all series in this group.
Features
---
|
Complete Voltage Range - 1.8 to 200 Volts
DO-204AH Package - Smaller than Conventional DO-204AA Package
Double Slug Type Construction
Metallurgically Bonded Construction
Mechanical Characteristics:
CASE: Double slug type, hermetically sealed glass
MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES: 230?C, 1/16", from case for 10 seconds
FINISH: All external surfaces are corrosion resistant with readily solderable leads
POLARITY: Cathode indicated by color band. When operated in zener mode, cathode will be positive with respect to anode
MOUNTING POSITION: Any
WAFER FAB LOCATION: Phoenix, Arizona
ASSEMBLY/TEST LOCATION: Seoul, Korea
