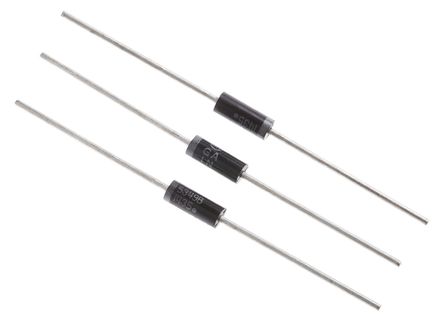

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

1N5349BG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW1801161
Category

Zener Diode, Zener
RoHS

Lead free / RoHS Compliant
Description

12V 5W
Documentation

Datasheet

1N5349BG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

1N5349BG Specifications

Attribute	Attribute Value

Part Number	1N5349BG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW1801161
Category	Zener Diode, Zener
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	017AA-01
Voltage Rating (DC)	12.0 V
Current Rating	1.00 A
Capacitance Tolerance	±5 %
Power Rating	5.00 W
Halogen Free Status	Halogen Free
Breakdown Voltage	50.0 V
Number of Positions	2 Position
Forward Voltage	1.2V @1A
Power Dissipation	5 W
Test Current	100 mA
Forward Current	1 A
Zener Voltage	12 V
Input Power (Max)	5 W
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	200 ℃
Power Dissipation (Max)	5000 mW
	expand all
Size-Length	8.89 mm
Size-Width	3.68 mm
Size-Height	3.68 mm
Operating Temperature	-65℃ ~ 200℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The 1N53 series from On Semiconductor are axial leaded zener voltage regulators in 017AA package.
Zener voltage Vz range from 3.3V to 200V
Maximum power dissipation of 5W
Operating temperature range -65°C to 200°C
Maximum surge current IFSM range from 0.9A to 20A
