1N5378B - Diotec Semiconductor

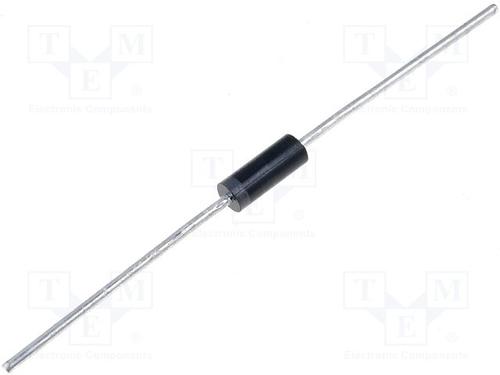

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

1N5378B
Manufacturer

Diotec Semiconductor
ChipWorker Part#

CW18510880
Category

Zener Diode, Zener
Package

DO-201
Description

Diode Zener Single 100V 5% 5W Automotive 2Pin DO-201 Ammo
Documentation

Datasheet

1N5378B Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

1N5378B Specifications

Attribute	Attribute Value

Part Number	1N5378B
Manufacturer	Diotec Semiconductor
ChipWorker Part#	CW18510880
Category	Zener Diode, Zener
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-201
Power Dissipation	5 W
Test Current	12 mA
Zener Voltage	100 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-50 ℃
	expand all
Product Lifecycle Status	Active
Packaging	Ammo Pack
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

• Maximum power dissipation 5 W
• Nominal Z-voltage 8.7…200 V
• Plastic case ~ DO-201
• Weight approx. 1 g
• Plastic material has UL classification 94V-0
• Standard packaging taped in ammo pack see page 16
• Standard Zener voltage tolerance is ± 5%. Other voltage tolerances and higher Zener voltages on request.
