1N6285A - ON Semiconductor

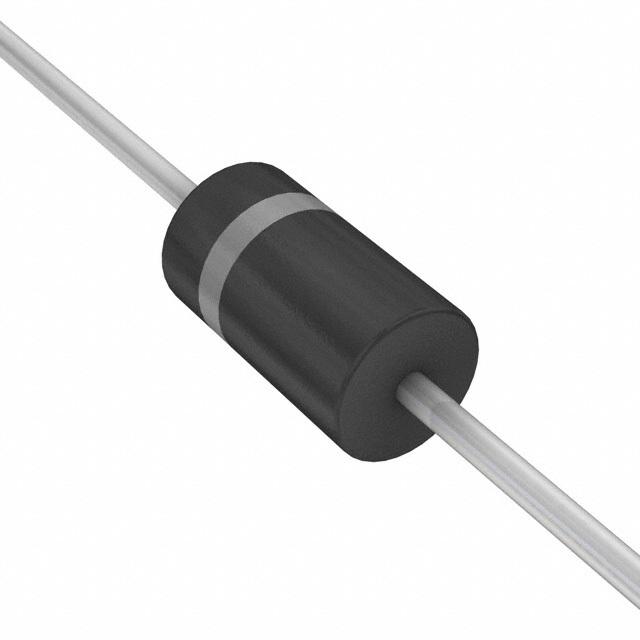

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

1N6285A
Manufacturer

ON Semiconductor
ChipWorker Part#

CW143277007
Category

TVS Diode
Package

DO-201AD
Description

Zener 39V 1500W 5%
Documentation

Datasheet

1N6285A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

1N6285A Specifications

Attribute	Attribute Value

Part Number	1N6285A
Manufacturer	ON Semiconductor
ChipWorker Part#	CW143277007
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-201AD
Voltage Rating (DC)	39.0 V
Power Rating	1.50 kW
Breakdown Voltage	39.0 V
Clamping Voltage	53.9 V
Test Current	1 mA
Peak Pulse Power	1500 W
Min Breakdown Voltage	37.1 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 175℃
	expand all
Size-Length	9.50 mm
Size-Diameter	5.30 mm
Operating Temperature	-65℃ ~ 175℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

1500 Watt Mosorb™ Zener Transient Voltage Suppressors
Unidirectional
Mosorb devices are designed to protect voltage sensitive components from high voltage, high−energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. These devices are ON Semiconductor’s exclusive, cost-effective, highly reliable Surmetic™ axial leaded package and are ideally-suited for use in communication systems, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications, to protect CMOS, MOS and Bipolar integrated circuits.
Features
• Working Peak Reverse Voltage Range − 5.8 V to 214 V
• Peak Power − 1500 Watts @ 1 ms
• ESD Rating of Class 3 (>16 kV) per Human Body Model
• Maximum Clamp Voltage @ Peak Pulse Current
• Low Leakage < 5 μA Above 10 V
• UL 497B for Isolated Loop Circuit Protection
• Response Time is Typically < 1 ns
• Pb−Free Packages are Available
