1PS76SB70 - NXP

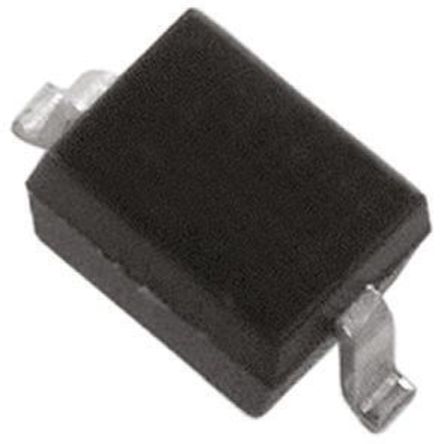

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

1PS76SB70
Manufacturer

NXP
ChipWorker Part#

CW98841522
Category

Schottky Diode
Package

SOD-323
Description

NXP 1PS76SB70 Small Signal Schottky Diode, Single, 70V, 70mA, 1V, 100mA, 150℃
Documentation

Datasheet

1PS76SB70 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

1PS76SB70 Specifications

Attribute	Attribute Value

Part Number	1PS76SB70
Manufacturer	NXP
ChipWorker Part#	CW98841522
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323
Number of Positions	2 Position
Forward Voltage	410 mV
Forward Current	70 mA
Max Forward Surge Current (Ifsm)	100 mA
Maximum Forward Voltage (Max)	1 V
Forward Current (Max)	70 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	expand all
Size-Length	1.8 mm
Size-Width	1.35 mm
Size-Height	1.05 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The 1PS7xSB70 series general purpose Schottky Diode encapsulated in a small surface-mounted device (SMD) plastic package. It is used for ultra high-speed switching and voltage clamping.
High switching speed
Low leakage current
High breakdown voltage
Low capacitance
AEC-Q101 qualified
