1SMB15AT3 - ON Semiconductor

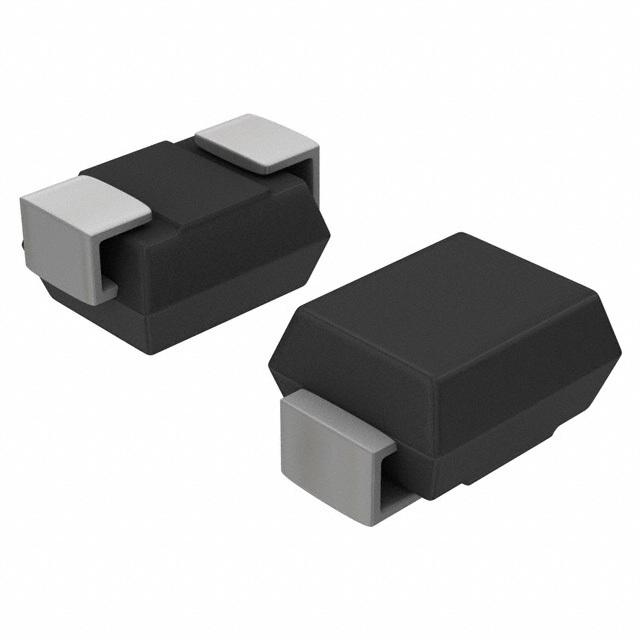

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

1SMB15AT3
Manufacturer

ON Semiconductor
ChipWorker Part#

CW101229410
Category

Diode
Package

DO-214AA-2
Description

SMB 15V 600W
Documentation

Datasheet

1SMB15AT3 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

1SMB15AT3 Specifications

Attribute	Attribute Value

Part Number	1SMB15AT3
Manufacturer	ON Semiconductor
ChipWorker Part#	CW101229410
Category	Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AA-2
Voltage Rating (DC)	15.0 V
Operating Voltage	15 V
Power Rating	600 W
Breakdown Voltage	16.7 V
Clamping Voltage	24.4 V
Max Repetitive Reverse Voltage (Vrrm)	15V
Test Current	1 mA
Peak Pulse Power	600 W
Min Breakdown Voltage	16.7 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
	expand all
Size-Length	4.57 mm
Size-Width	3.81 mm
Size-Height	2.41 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99

Product Description

600 Watt Peak Power Zener Transient Voltage Suppressors；Features • Working Peak Reverse Voltage Range − 5.0 V to 170 V • Standard Zener Breakdown Voltage Range − 6.7 V to 199 V • Peak Power − 600 W @ 1.0 ms • ESD Rating of Class 3 (>16 kV) per Human Body Model • Maximum Clamp Voltage @ Peak Pulse Current • Low Leakage < 5.0 uA Above 10 V • UL 497B for Isolated Loop Circuit Protection • Response Time is Typically < 1.0 ns • Pb−Free Packages are Available
