1SMB18CAT3G - ON Semiconductor

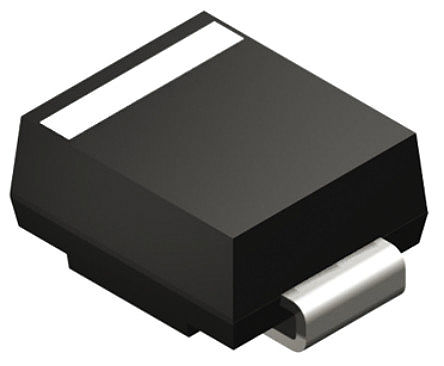

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

1SMB18CAT3G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW77550936
Category

TVS Diode
Package

SMB
Description

SMB 18V 600W
Documentation

Datasheet

1SMB18CAT3G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

1SMB18CAT3G Specifications

Attribute	Attribute Value

Part Number	1SMB18CAT3G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW77550936
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMB
Voltage Rating (DC)	18.0 V
Current Rating	20.5 A
Capacitance	465 pF
Power Rating	600 W
Halogen Free Status	Halogen Free
Breakdown Voltage	20 V
Number of Circuits	1 Circuit
Power Dissipation	600 W
Clamping Voltage	29.2 V
Max Repetitive Reverse Voltage (Vrrm)	18V
Test Current	1 mA
Max Breakdown Voltage	22.1 V
Peak Pulse Power	600 W
Min Breakdown Voltage	20 V
Reverse Breakdown Voltage	20 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
Junction Temperature (Max)	150 ℃
Supply Voltage	18 VDC
	expand all
Size-Length	4.57 mm
Size-Width	3.81 mm
Size-Height	2.41 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
