1SMB5919BT3 - ON Semiconductor

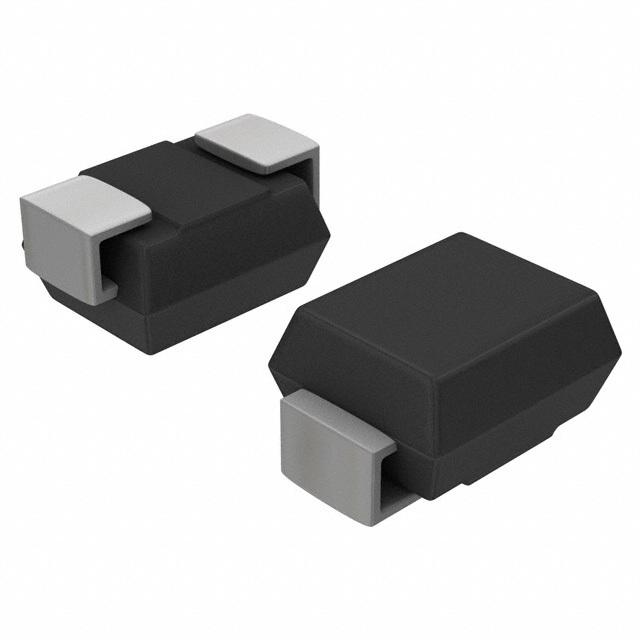

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

1SMB5919BT3
Manufacturer

ON Semiconductor
ChipWorker Part#

CW128557939
Category

Zener Diode, Zener
Package

DO-214AA
Description

SMB 5.6V 550mW
Documentation

Datasheet

1SMB5919BT3 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

1SMB5919BT3 Specifications

Attribute	Attribute Value

Part Number	1SMB5919BT3
Manufacturer	ON Semiconductor
ChipWorker Part#	CW128557939
Category	Zener Diode, Zener
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AA
Voltage Rating (DC)	5.60 V
Capacitance Tolerance	±5 %
Power Rating	3.00 W
Forward Voltage	1.5V @200mA
Power Dissipation	550 mW
Test Current	66.9 mA
Zener Voltage	5.6 V
Maximum Forward Voltage (Max)	1.5V @200mA
Input Power (Max)	3 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	expand all
Material	Plastic
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99

Product Description

3 Watt Plastic Surface Mount Zener Voltage Regulators
This complete new line of 3 Watt Zener diodes offers the following advantages.
Features
•Zener Voltage Range − 3.3 V to 200 V
•ESD Rating of Class 3 (>16 kV) per Human Body Model
•Flat Handling Surface for Accurate Placement
•Package Design for Top Side or Bottom Circuit Board Mounting
•Pb−Free Packages are Available
