1SMC24AT3G - ON Semiconductor

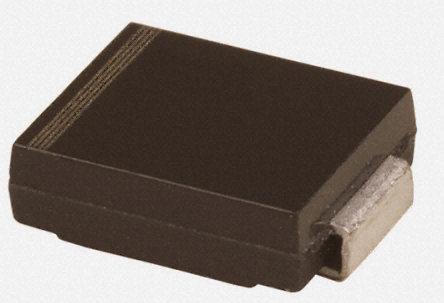

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

1SMC24AT3G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW76598793
Category

TVS Diode
Package

DO-214AB
Description

SMC 24V 1500W
Documentation

Datasheet

1SMC24AT3G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

1SMC24AT3G Specifications

Attribute	Attribute Value

Part Number	1SMC24AT3G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW76598793
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AB
Voltage Rating (DC)	90.0 V
Power Rating	1.50 kW
Halogen Free Status	Halogen Free
Breakdown Voltage	26.7 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	1.5 kW
Clamping Voltage	38.9 V
Max Repetitive Reverse Voltage (Vrrm)	24V
Test Current	1 mA
Max Breakdown Voltage	29.5 V
Peak Pulse Power	1500 W
Min Breakdown Voltage	26.7 V
Reverse Breakdown Voltage	26.7 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
	expand all
Size-Length	7.11 mm
Size-Width	6.1 mm
Size-Height	2.41 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

1500 Watt Peak Power Zener Transient Voltage Suppressors Unidirectional
The SMC series is designed to protect voltage sensitive components from high voltage, high energy transients. They have
excellent clamping capability, high surge capability, low zener impedance and fast response time. The SMC series is supplied in ON Semiconductor’s exclusive, cost-effective, highly reliable Surmetic package and is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications.
Features
•Working Peak Reverse Voltage Range − 5.0 V to 78 V
•Standard Zener Breakdown Voltage Range − 6.7 V to 91.25 V
•Peak Power − 1500 W @ 1 ms
•ESD Rating of Class 3 (>16 KV) per Human Body Model
•Maximum Clamp Voltage @ Peak Pulse Current
•Low Leakage < 5 A Above 10 V
•UL 497B for Isolated Loop Circuit Protection
•Maximum Temperature Coefficient Specified
•Response Time is Typically < 1 ns
•Pb−Free Packages are Available

expand all
