215083-8 ,Wire to Board Connector - TE Connectivity

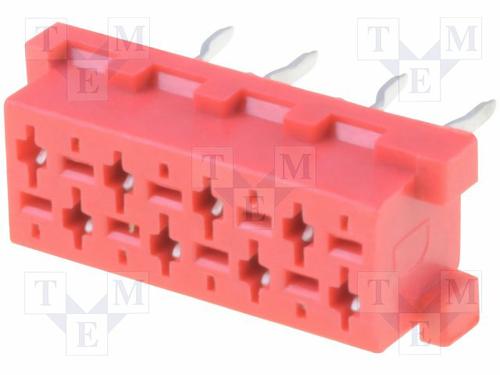

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

140 points

Part No

215083-8
Manufacturer

TE Connectivity
ChipWorker Part#

CW4300800
Category

Wire to Board Connector
Package

-
Description

AMP - TE CONNECTIVITY 215083-8 Board-To-Board Connector, 28AWG, 1.27mm, 8Contacts, Plug, Micro-MaTch Series, IDC / IDT, 2Rows
Documentation

Datasheet
Ships from

Moscow
Наличие

22 pcs In Stock
Estimated Price

$ 0.18

Buy 215083-8

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

215083-8 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

215083-8 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	215083-8
Manufacturer	TE Connectivity
ChipWorker Part#	CW4300800
Category	Wire to Board Connector
Documentation	Datasheet
Number of Pins	8 Pin
Case/Package	-
Number of Contacts	8 Contact
Gender	Male
Wire Gauge	28 AWG
Contact Plating	Tin
Current Rating	1.5 A
Number of Rows	2 Row
Orientation	Vertical
Flammability Rating	UL 94 V-0
Number of Positions	8 Position
Current Rating (Max)	1.5A/触头
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	230 VAC
Voltage Rating	230 VAC
Maximum Contact Resistance (Max)	10 mΩ
	expand all
Size-Length	13.6 mm
Size-Width	5.1 mm
Size-Height	10.2 mm
Housing Color	Red
Color	Red
Contact Material	Phosphor Bronze
Operating Temperature	-40℃ ~ 105℃
Housing Material	Polyester
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536694040
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The Micro-MaTch series miniature Micro-MaTch Connector provides a proven reliable connection. Its unique contact-spring system helps prevent fretting corrosion by absorbing movements between male and female contacts. A contact concept that inspires. The Micro-MaTch contact concept is essentially different from other systems available. By its design, the traditional failure mode in tinplated connections, fretting corrosion, is prevented. The separation of the two basic functions of the contact system (contact force generation and wire termination), enables the optimization of both functions and leads to relatively simple contact shapes.
Tin-plated contact design
One of the smallest systems available at 1.27mm
Guaranteed minimum contact force of 2N
Fretting corrosion proof thanks to additional positioning spring member
Fully plated contacts - No bare edges and no migration of corrosion products
Contacts fully protected by polyester housings, except for side-entry female board connector
Full range of application tooling from hand tool to fully automated equipment
