24PCBFA6D - Honeywell

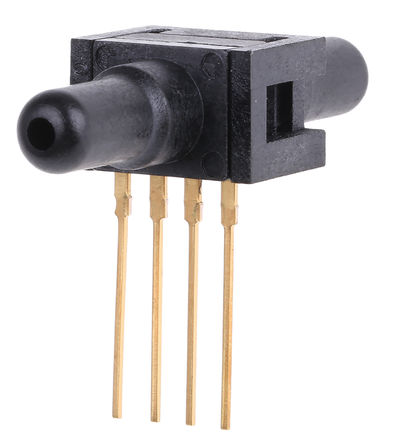

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

24PCBFA6D
Manufacturer

Honeywell
ChipWorker Part#

CW7176940
Category

Pressure Sensor
Package

SIP-4
Description

Pressure Sensor, Miniature, Silicon, 5psi, Differential, Straight, Voltage, 10V, 2mA
Documentation

Datasheet

24PCBFA6D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

24PCBFA6D Specifications

Attribute	Attribute Value

Part Number	24PCBFA6D
Manufacturer	Honeywell
ChipWorker Part#	CW7176940
Category	Pressure Sensor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	SIP-4
Supply Voltage (DC)	10.0 V
Voltage Rating (DC)	10.0 V
Output Voltage	0mV ~ 115mV
Supply Current	2 mA
Input Impedance	5 kΩ
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Voltage Rating	10 V
Supply Voltage	10V ~ 12V
	expand all
Size-Width	12.7 mm
Size-Height	8 mm
Weight	2 g
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	9026204000
ECCN Code	EAR99

Product Description

**Honeywell 24PC/26PC Series Low Pressure Sensors**
These miniature Surface Mount Technology (SMT) Low Pressure Sensors are small, cost effective devices intended for use with wet/wet differential sensing. Based on the long established reliability and accuracy of the single in-line package, the SMT version’s smaller configuration reduces the footprint area on the printed circuit board thereby reducing overall PCB size and cost. The sensor is capable of being board-mounted with other common SMT devices, helping to eliminate secondary board mounting operations and improving manufacturing productivity. The 24PC/26PC sensors feature proven sensing technology that uses a specialized piezo-resistive micro-machined sensing element to offer high performance, reliability, and accuracy. Both sensor series are unamplified but the 26PC series are temperature compensated. The sensors can be used with a wide variety of wet and dry media that are compatible with polyphthalamide (PPA) plastics and media seals and they are designed to measure pressures from ±1 to ±15 psi over an operating temperature range of -40 to 85 …C.
