2966472 - Phoenix

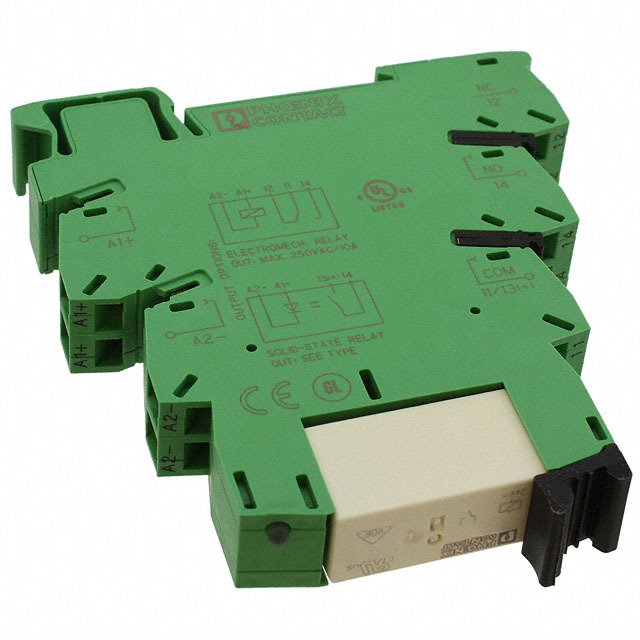

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

2966472
Manufacturer

Phoenix
ChipWorker Part#

CW77137421
Category

Power Relay
Package

Module
Description

Electromechanical Relay 24VDC 2.67KΩ 6A SPDT (( 6.2mm 80mm 94mm)) DIN Rail PLC Relay
Documentation

Datasheet

2966472 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

2966472 Specifications

Attribute	Attribute Value

Part Number	2966472
Manufacturer	Phoenix
ChipWorker Part#	CW77137421
Category	Power Relay
Documentation	Datasheet
Mounting Style	PCB
Number of Pins	5 Pin
Case/Package	Module
Voltage Rating (DC)	250 V
Voltage Rating (AC)	250 V
Current Rating	6 A
Power Rating	140 W
Contacts Type	SPDT
Input Current	9 mA
Power Consumption	140 W
Contact Current Rating	6 A
Coil Voltage	24 VDC
Coil Current	9 mA
Coil Resistance	2.67 KΩ
Current Rating (Max)	6 A
Coil Voltage (DC)	24 V
Input Power (Max)	1.5 KVA
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating	250 VAC
Voltage Rating (DC Max)	250 V
Voltage Rating (AC Max)	250 V
	expand all
Size-Length	80 mm
Size-Width	94 mm
Size-Height	94 mm
Contact Material	Silver Tin Oxide
Operating Temperature	-25℃ ~ 60℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536410050
ECCN Code	EAR99

Product Description

PLC-RELAY Series: Terminal Block with Plug-in Relay or SSR
The PLC-RELAY is the only pluggable quarter inch terminal block, which accepts either a solid-state relay or an electro-mechanical relay. Using only one part number, you are able to order both the base terminal block and the pluggable relay as a single unit. The PLC-RELAY is also available with switching capacities up to 10 A at 250 VAC.
The PLC-RELAY now also available in both sensor and actuator versions. In these versions you can connect sensors and actuators to the base terminal blocks to eliminate costly wiring and additional output terminal blocks. The preceding variations are only a few of the possibilities that are available. There are now over 100 variations available in different configurations and ratings.
