2EDL05N06PFXUMA1 - Infineon

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

2EDL05N06PFXUMA1
Manufacturer

Infineon
ChipWorker Part#

CW9973000
Category

FET Driver
Package

SOIC-8
Description

MOSFET DRVR 0.5A 2Out Hi/Lo Side Non-Inv 8Pin DSO T/R
Documentation

Datasheet

2EDL05N06PFXUMA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

2EDL05N06PFXUMA1 Specifications

Attribute	Attribute Value

Part Number	2EDL05N06PFXUMA1
Manufacturer	Infineon
ChipWorker Part#	CW9973000
Category	FET Driver
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	10.0V (min)
Rise/Fall Time	48ns, 24ns
Number of Outputs	2 Output
Number of Positions	8 Position
Power Dissipation	600 mW
Rise Time	80 ns
Input Bias Current	60 µA
Fall Time	40 ns
Fall Time (Max)	30 ns
Fall Time (Max)	80 ns
Operating Temperature (Max)	95 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	600 mW
Supply Voltage	10V ~ 20V
Supply Voltage (Max)	17.5 V
Supply Voltage (Min)	10 V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.65 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

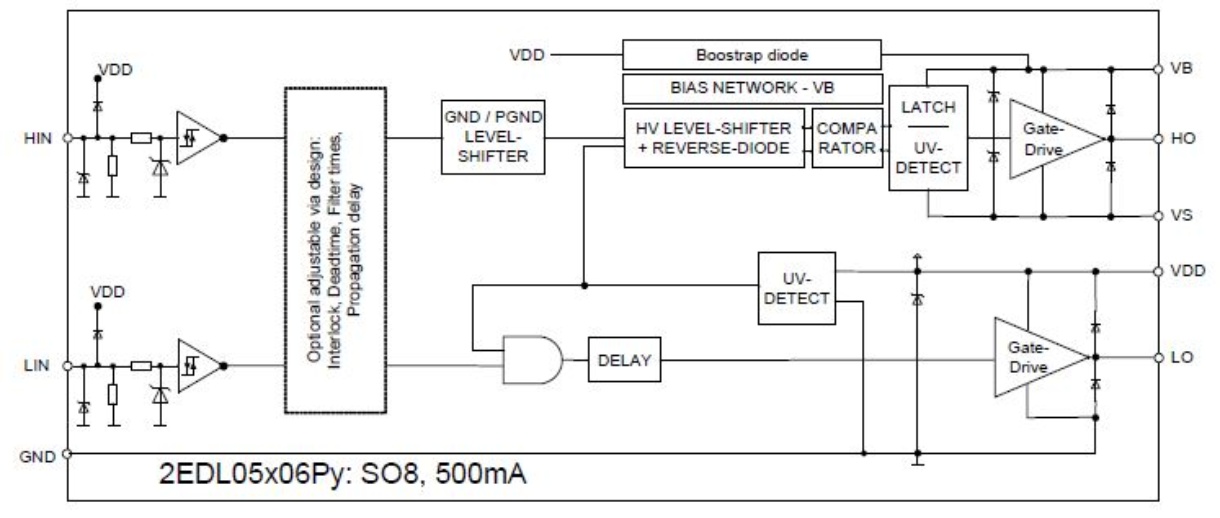

The 2EDL05N06PFXUMA1 is an EiceDRIVER compact 600V half bridge gate drive IC in 8 pin DSO package. It has an individual control circuits for both outputs, filtered detection of under voltage supply and all inputs clamped by diodes. It also features off line gate clamping function, asymmetric undervoltage lockout thresholds for high side and low side, insensitivity of the bridge output to negative transient voltages up to -50V given by SOI-technology and ultra fast bootstrap diode. Typical applications include home appliances, consumer electronics, fans, pumps and general purpose drives.
Supply voltage is 10V to 17.5V
Output current is 1.5A
Target transistor is MOSFET
LS UVLO thresholds is 9.1V / 8.3V
Dead time, interlock
Operating temperature range from -40°C to 95°C
