2N3053 - Central Semiconductor

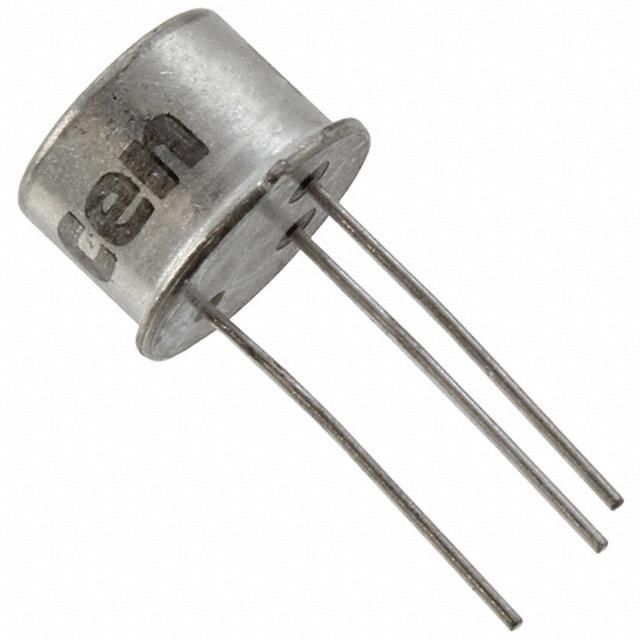

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

2N3053
Manufacturer

Central Semiconductor
ChipWorker Part#

CW84680545
Category

BJT Transistor, BJT
Package

TO-39
Description

2N Series 40V 700mA NPN Through Hole Silicon Transistor - TO-39
Documentation

Datasheet

2N3053 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

2N3053 Specifications

Attribute	Attribute Value

Part Number	2N3053
Manufacturer	Central Semiconductor
ChipWorker Part#	CW84680545
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-39
Frequency	100 MHz
Power Dissipation	5 W
Breakdown Voltage (Collector to Emitter)	40 V
hFE Min	50 @150mA, 10V
Input Power (Max)	5 W
	expand all
Operating Temperature	-65℃ ~ 200℃ (TJ)
Product Lifecycle Status	Active
Packaging	Box
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
