2N6075BG - ON Semiconductor

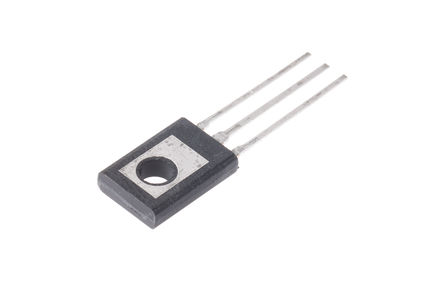

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part No2N6075BG
-
ManufacturerON Semiconductor
-
ChipWorker Part#CW38915121
-
CategoryTRIAC Diode, TRIAC
-
PackageTO-126-3
-
DescriptionON Semiconductor, 2N6075BG, TRIAC, 600V 4A, Gate Trigger 2.5V 5mA, 3Pin TO-225
-
DocumentationDatasheet
