2SA1186 - Sanken Electric

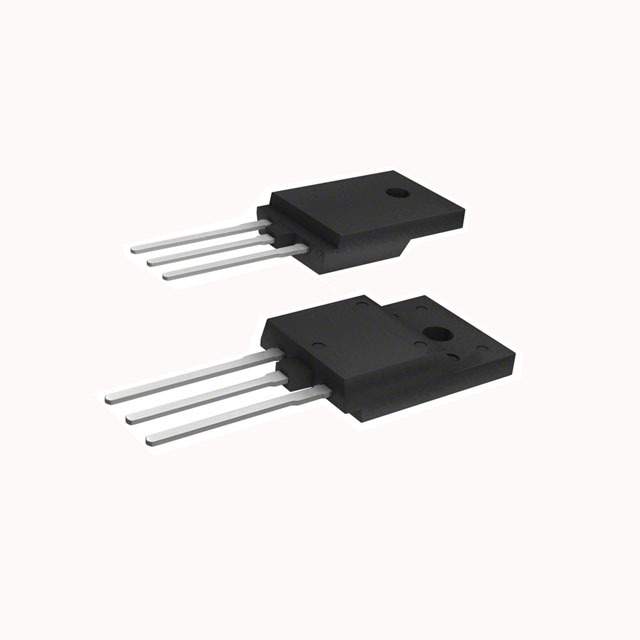

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

2SA1186
Manufacturer

Sanken Electric
ChipWorker Part#

CW89264079
Category

BJT Transistor, BJT
Package

TO-3-3
Description

Power Bipolar Transistor, 10A I(C), 150V V(BR)CEO, 1Element, PNP, Silicon, Plastic/Epoxy, 3Pin, MT-100, TO-3P, 3Pin
Documentation

Datasheet

2SA1186 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

2SA1186 Specifications

Attribute	Attribute Value

Part Number	2SA1186
Manufacturer	Sanken Electric
ChipWorker Part#	CW89264079
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-3-3
Breakdown Voltage (Collector to Emitter)	150 V
hFE Min	50 @3A, 4V
Input Power (Max)	100 W
	expand all
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Application : Audio and General Purpose
