2SA2090TLQ - ROHM Semiconductor

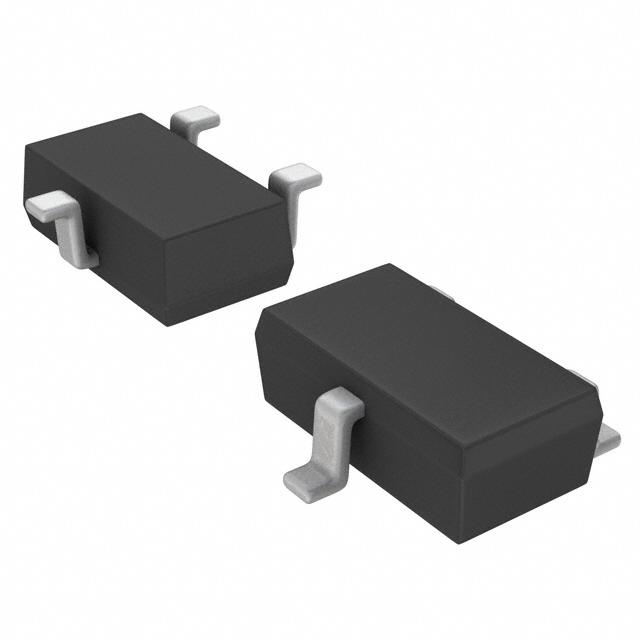

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

2SA2090TLQ
Manufacturer

ROHM Semiconductor
ChipWorker Part#

CW135389430
Category

BJT Transistor, BJT
Package

TSMT-3
Description

TSMT PNP 60V 0.5A
Documentation

Datasheet

2SA2090TLQ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

2SA2090TLQ Specifications

Attribute	Attribute Value

Part Number	2SA2090TLQ
Manufacturer	ROHM Semiconductor
ChipWorker Part#	CW135389430
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	TSMT-3
Voltage Rating (DC)	-60.0 V
Current Rating	-500 mA
Polarity	PNP
Power Dissipation	500 mW
Breakdown Voltage (Collector to Emitter)	60 V
Continuous Collector Current	0.5A
hFE Min	120
hFE Max	270
Input Power (Max)	500 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500 mW
	expand all
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Not Recommended
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Bipolar (BJT) Transistor PNP 60V 500mA 400MHz 500mW Surface Mount TSMT3
