2SC3263 - Sanken Electric

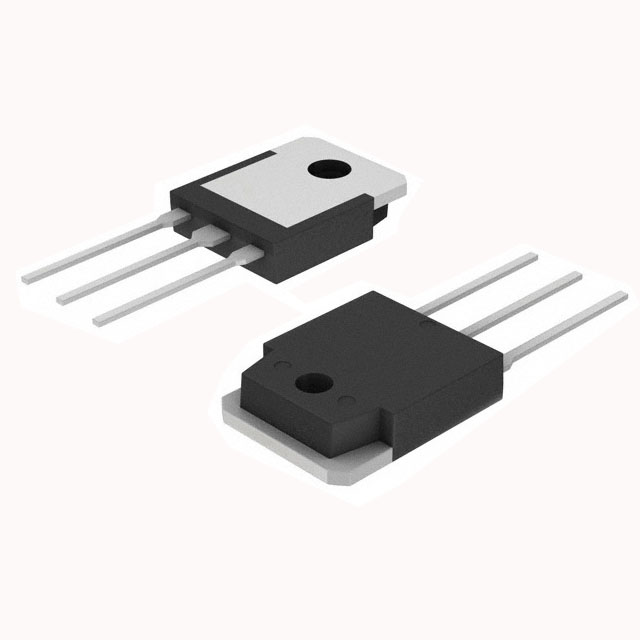

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

2SC3263
Manufacturer

Sanken Electric
ChipWorker Part#

CW25018939
Category

BJT Transistor, BJT
Package

TO-3-3
Description

TO-3P NPN 230V 6A
Documentation

Datasheet

2SC3263 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

2SC3263 Specifications

Attribute	Attribute Value

Part Number	2SC3263
Manufacturer	Sanken Electric
ChipWorker Part#	CW25018939
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-3-3
Frequency	60 MHz
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	130 W
Breakdown Voltage (Collector to Emitter)	230 V
Continuous Collector Current	6A
hFE Min	40 @5A, 4V
Input Power (Max)	130 W
DC Current Gain (hFE)	50
Operating Temperature (Max)	150 ℃
Power Dissipation (Max)	130 W
	expand all
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The 2SC3263 is a 230V Silicon NPN Epitaxial Planar Transistor designed for audio and general purpose. Sanken LAPT transistor has an innovative design, produced by adapting advancements in the unique Sanken thin-wafer production technology. This PNP power transistor achieve faster power-up by decreasing thermal resistance and provide a higher avalanche breakdown voltage rating. This series of transistors is very well suited not only for multichannel applications for AV (audio-visual) amplifiers and receivers, but also for parallel connection applications for PA (professional audio system) amplifiers.
Complement to type 2SA1294
