2SC5658T2LR - ROHM Semiconductor

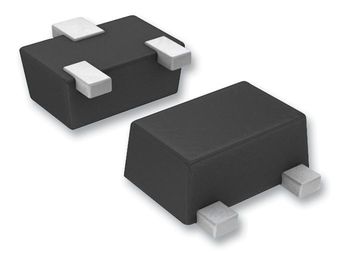

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

2SC5658T2LR
Manufacturer

ROHM Semiconductor
ChipWorker Part#

CW19337048
Category

BJT Transistor, BJT
Package

VMT-3
Description

VMT NPN 50V 0.15A
Documentation

Datasheet

2SC5658T2LR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

2SC5658T2LR Specifications

Attribute	Attribute Value

Part Number	2SC5658T2LR
Manufacturer	ROHM Semiconductor
ChipWorker Part#	CW19337048
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	VMT-3
Frequency	180 MHz
Voltage Rating (DC)	50.0 V
Current Rating	150 mA
Polarity	NPN
Power Dissipation	0.15 W
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	0.15A
hFE Min	120 @1mA, 6V
Input Power (Max)	150 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	150 mW
	expand all
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Bipolar (BJT) Transistor NPN 50V 150mA 180MHz 150mW Surface Mount VMT3
