2SD1760TLR - ROHM Semiconductor

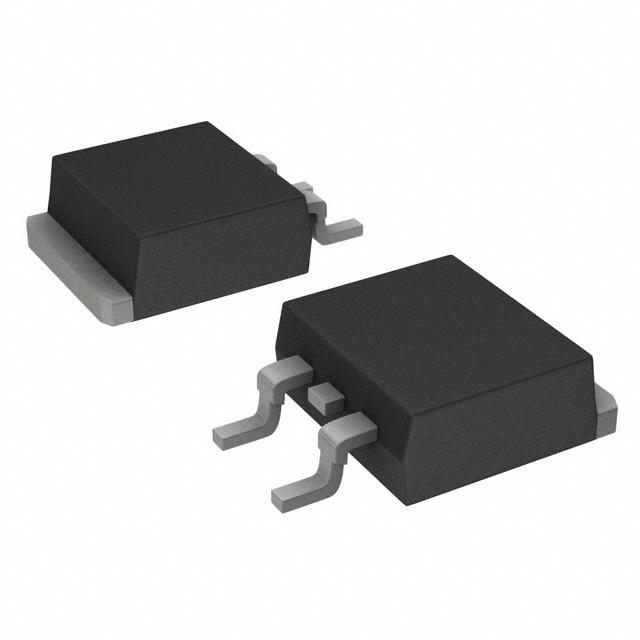

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

2SD1760TLR
Manufacturer

ROHM Semiconductor
ChipWorker Part#

CW50882820
Category

BJT Transistor, BJT
Package

TO-252-3
Description

CPT NPN 50V 3A
Documentation

Datasheet

2SD1760TLR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

2SD1760TLR Specifications

Attribute	Attribute Value

Part Number	2SD1760TLR
Manufacturer	ROHM Semiconductor
ChipWorker Part#	CW50882820
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Voltage Rating (DC)	50.0 V
Current Rating	3.00 A
Polarity	N-Channel, NPN
Power Dissipation	15000 mW
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	3A
hFE Min	180 @500mA, 3V
hFE Max	180 @500mA, 3V
Input Power (Max)	15 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	15000 mW
	expand all
Size-Length	6.5 mm
Size-Width	5.5 mm
Size-Height	2.3 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Not Recommended
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Product Description

Power Transistor (50V, 3A)
Features
1) Low VCE(sat),
VCE(sat) = 0.5V (Typ.)
(IC/IB = 2A/0.2A)
2) Complements the
2SB1184 / 2SB1243 / 2SB1185.
Structure
Epitaxial planar type NPN silicon transistor
