4N27M - Fairchild

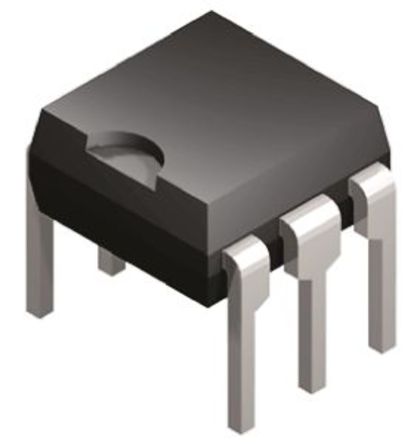

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

4N27M
Manufacturer

Fairchild
ChipWorker Part#

CW11160333
Category

Optocoupler, Optoisolator
Package

DIP-6
Description

FAIRCHILD SEMICONDUCTOR 4N27M Optocoupler, Transistor Output, 1Channel, DIP, 6Pins, 60mA, 7.5kV, 10%
Documentation

Datasheet

4N27M Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

4N27M Specifications

Attribute	Attribute Value

Part Number	4N27M
Manufacturer	Fairchild
ChipWorker Part#	CW11160333
Category	Optocoupler, Optoisolator
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	DIP-6
Input Voltage (DC)	1.18 V
Output Voltage	30.0 V
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	6 Position
Forward Voltage	1.18 V
Input Current	10.0 mA
Power Dissipation	250 mW
Rise Time	2 µs
Isolation Voltage	4170 Vrms
Forward Current	60 mA
Output Voltage (Max)	30 V
Input Current (Min)	3 A
Reverse Breakdown Voltage	6 V
Maximum Forward Voltage (Max)	1.5 V
Forward Current (Max)	60 mA
Fall Time	2 µs
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	250 mW
	expand all
Size-Length	8.89 mm
Size-Width	6.6 mm
Size-Height	3.53 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-DIP
