4N35SM ,Optocoupler, Optoisolator - Fairchild

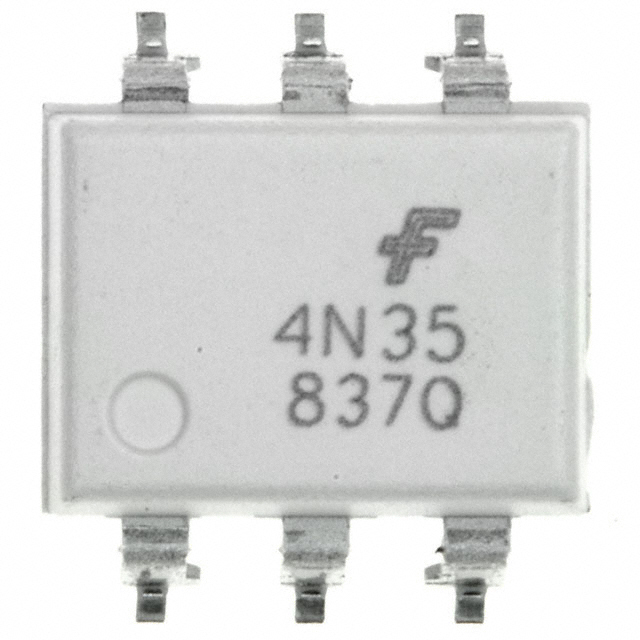

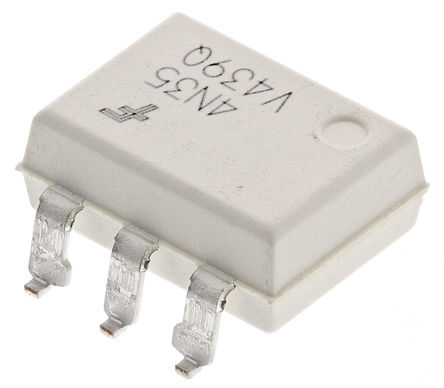

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

131 points

Part No

4N35SM
Manufacturer

Fairchild
ChipWorker Part#

CW11927848
Category

Optocoupler, Optoisolator
Package

SMD-DIP-6
Description

Optocoupler DC Input 1Channel Trans W/Base DC Output 6Pin Plastic Dip SMD White Bulk
Documentation

Datasheet
Ships from

Moscow
Наличие

1600 pcs In Stock
Estimated Price

$ 0.21

Buy 4N35SM

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

4N35SM Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

4N35SM Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	4N35SM
Manufacturer	Fairchild
ChipWorker Part#	CW11927848
Category	Optocoupler, Optoisolator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SMD-DIP-6
Input Voltage (DC)	1.18 V
Output Voltage	30.0 V
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	6 Position
Forward Voltage	1.18 V
Input Current	10.0 mA
Power Dissipation	0.25 W
Rise Time	2 µs
Isolation Voltage	5250 Vrms
Forward Current	60 mA
Output Voltage (Max)	30 V
Input Current (Min)	60 mA
Reverse Breakdown Voltage	6 V
Maximum Forward Voltage (Max)	1.5 V
Forward Current (Max)	60 mA
Fall Time	2 µs
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	250 mW
	expand all
Size-Width	6.6 mm
Size-Height	3.53 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

DESCRIPTION
The general purpose optocouplers consist of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in-line package.
FEATURES
• Also available in white package by specifying -M suffix, eg. 4N25-M
• UL recognized (File # E90700)
• VDE recognized (File # 94766)
- Add option V for white package (e.g., 4N25V-M)
- Add option 300 for black package (e.g., 4N25.300)
APPLICATIONS
• Power supply regulators
• Digital logic inputs
• Microprocessor inputs
