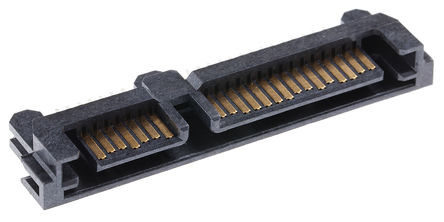

5622-2222-ML ,Jack Socket - 3M

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

51 points

Part No

5622-2222-ML
Manufacturer

3M
ChipWorker Part#

CW11588596
Category

Jack Socket
Description

Conn SATA RCP 15Power/7Signal POS 1.27mm Solder ST SMD 22 Terminal 1Port
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 2.33

Buy 5622-2222-ML

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

5622-2222-ML Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

5622-2222-ML Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	5622-2222-ML
Manufacturer	3M
ChipWorker Part#	CW11588596
Category	Jack Socket
Documentation	Datasheet
Mounting Style	Surface Mount
Pin Pitch	1.27 mm
Number of Contacts	22 Contact
Gender	Female
Contact Plating	Gold
Current Rating	1.5 A
Insulation Resistance	1000 MΩ
Number of Rows	1 Row
Number of Positions	22 Position
Current Rating (Max)	1.5 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	54.5 mm
Size-Width	5.50 mm
Size-Height	5.5 mm
Housing Color	Black
Contact Material	Copper Alloy
Operating Temperature	-40℃ ~ 85℃
Housing Material	Plastic
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

22 Position SATA Receptacle Connector Solder Surface Mount
