5KP15CA - Littelfuse

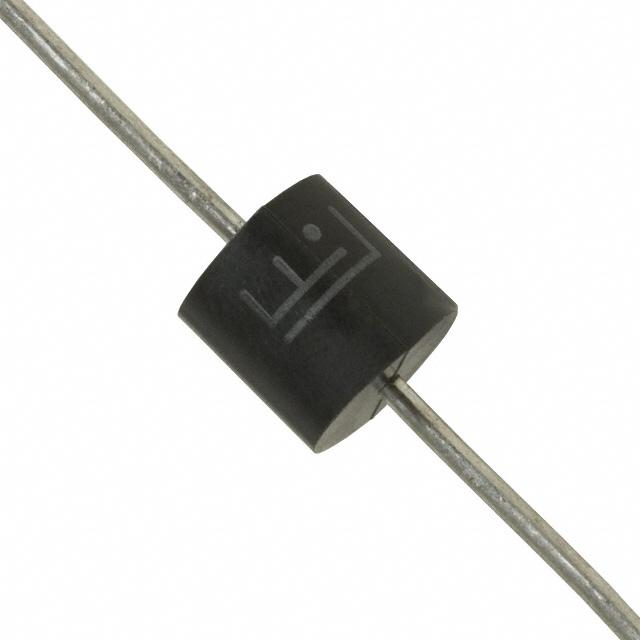

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

5KP15CA
Manufacturer

Littelfuse
ChipWorker Part#

CW58532536
Category

TVS Diode
Package

P-600
Description

5KP Series 24.4V 5kW Through Hole Uni-Directional TVS Diode - P-600
Documentation

Datasheet

5KP15CA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

5KP15CA Specifications

Attribute	Attribute Value

Part Number	5KP15CA
Manufacturer	Littelfuse
ChipWorker Part#	CW58532536
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	P-600
Voltage Rating (DC)	15.0 V
Power Rating	5.00 kW
Breakdown Voltage	16.7 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	5000 W
Clamping Voltage	24.4 V
Test Current	5 mA
Max Breakdown Voltage	18.5 V
Peak Pulse Power	5000 W
Min Breakdown Voltage	16.7 V
Reverse Breakdown Voltage	16.7 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 175℃
	expand all
Size-Length	9.1 mm
Size-Diameter	9.10 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17

Product Description

24.4V Clamp 209A Ipp Tvs Diode Through Hole P600
