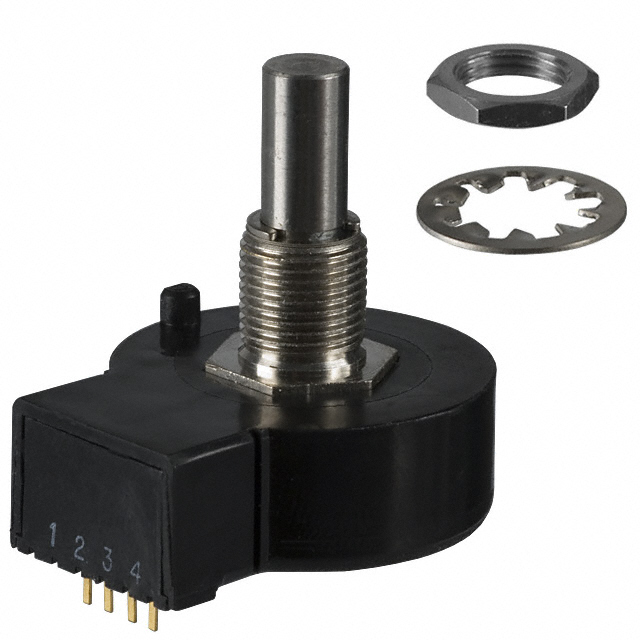

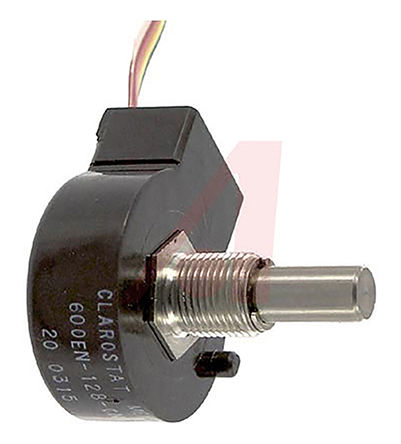

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

600128CBL
Manufacturer

Honeywell
ChipWorker Part#

CW29925503
Category

Encoder
Package

600
Description

Encoder, 30mA, 5VDC (Nom.), 10KΩ (Pull-up), -40 to 65℃, Optical
Documentation

Datasheet

600128CBL Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

600128CBL Specifications

Attribute	Attribute Value

Part Number	600128CBL
Manufacturer	Honeywell
ChipWorker Part#	CW29925503
Category	Encoder
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	600
Voltage Rating (DC)	5.00 V
Current Rating	30 mA
Number of Channels	2 Channel
Operating Temperature (Max)	65 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	5 VDC
Supply Voltage	5 VDC
	expand all
Size-Height	34.42 mm
Material	Thermoplastic
Operating Temperature	-40℃ ~ 65℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

600 Series Encoder, 30 Ma Current Rating, 5 VDC (Nom.) Voltage Rating
The series 600 controls are manually operated, rotary, optical encoders that output two square waves in quadrature at a rate of 128 pulses per channel per revolution as a standard with other resolutions down to 60 pulses available. The outputs are TTL compatible. The variation in this series is in the terminal configuration: either pin leads or cable leads.*
Specifications. Input Power:* 5 volts DC ±5% @ 30 MA max. plus external requirements. ** Output Rate** 128 pulses/revolution per channel-standard; Other pulses/revolution between 60 and 128 are available. ** Channels:** Two separate output channels in quadrature, 90° ±45°. ** Output Voltage:** High level voltage — 2.4 volts min. with 10 KΩ load to ground; Low level voltage — 0.4 volt max. ** Operating Temp:** -20°C to +65°. ** Vibration:** 10 to 2000 Hz, 15 G peck; MIL-STD-202 method 204 test C. ** Shock:** 100 G @ 6 ms MIL-STD-202 method 213 condition 1.
** Mechanical Characteristics. Shaft Rotation:** Continuous in either direction. ** Operating Speed:** 300 rpm max. ** Rotational Life:** 10 million revolutions. ** Rotational Torque:** 1.5 ozs. in max. ** Shaft:** 1/4 diameter standard, stainless steel. ** Bushing:** 3/8 diameter standard, brass, nickel plated. ** Terminals:** P/C Type — 0.25 by 0.12 thick brass, gold plated to facilitate soldering. Cable Type — Four lead ribbon cables, color-coded, with 0.050 spacing, 28 AWG stranded copper wire, 0.39 diameter. ** Strength:** Terminals withstand 2 Lbs. push and pull and a 90° bend. ** Mounting Hardware (not supplied):** For 3/8 bushing, use hex mounting nut 3/8 × 32 thread, 1/2 across flats, 3/32 thick; internal tooth lockwasher 11/16 O.D. by 0.022 thick. ** Seals:** Mounting seal and shaft seal available. Controls are not sealed for board washing. ** Weight:** P/C type or cable type. 1 in. FMS shaft and 3/8 bushing-0.046 Lb. (21 G). ** Loc. Pin (Not Standard):** Single pin located 17/32 from center can be supplied.
* Optical Incremental Encoders
* Analog to Digital Converters
* TTL Compatible All Models
* Only 1.125" Diameter × 0.484" Deep
