61C11-01-08-02 ,Encoder - Grayhill

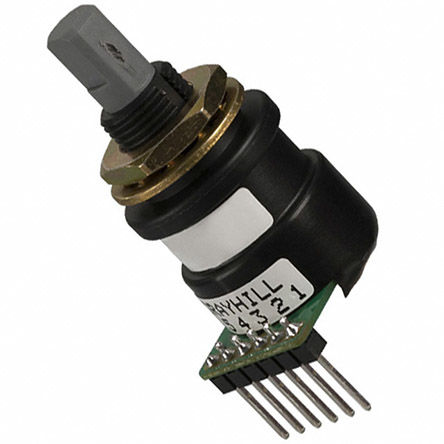

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

134 points

Part No

61C11-01-08-02
Manufacturer

Grayhill
ChipWorker Part#

CW14101684
Category

Encoder
Description

61 Series 32Position 11.25° No Detent PC Mount Pushbutton Optical Encoder
Documentation

Datasheet
Ships from

Moscow
Наличие

1588 pcs In Stock
Estimated Price

$ 19.09

Buy 61C11-01-08-02

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

61C11-01-08-02 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

61C11-01-08-02 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	61C11-01-08-02
Manufacturer	Grayhill
ChipWorker Part#	CW14101684
Category	Encoder
Documentation	Datasheet
Mounting Style	Through Hole
Supply Voltage (DC)	4.75V (min)
Orientation	Vertical
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	32 Position
Number of Detents	32 Detent
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	5 V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	expand all
Size-Length	19.05 mm
Size-Height	39.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509020

Similar & Replacement Parts

Similar products

Product Description

The 61C11-01-08-02 is a standard Optical Encoder with tin-plated phosphor bronze board terminals and data entry pushbutton switch activated by switch shaft. The quadrature coding optical encoder has reinforced thermoplastic shaft and bushing. Optically coupled for more than a million trouble-free rotations. Compatible with CMOS, TTL and HCMOS logic. Operationally used to move display icon and input data. Used to set radio frequency, drill depth and RPM.
11.25° or 32 positions Angle of throw
-40 to 85°C Operating temperature range
