66506-9 ,D-Sub Accessory - TE Connectivity

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

179 points

Part No

66506-9
Manufacturer

TE Connectivity
ChipWorker Part#

CW6968408
Category

D-Sub Accessory
Package

-
Description

Connector Contact Pin 1Position Crimp Straight Cable Mount 1 Terminal 1Port Loose Piece
Documentation

Datasheet
Ships from

Moscow
Наличие

4973 pcs In Stock
Estimated Price

$ 0.12

Buy 66506-9

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

66506-9 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

66506-9 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	66506-9
Manufacturer	TE Connectivity
ChipWorker Part#	CW6968408
Category	D-Sub Accessory
Documentation	Datasheet
Case/Package	-
Number of Contacts	1 Contact
Gender	Male
Wire Gauge	20AWG ~ 24AWG
Contact Plating	Gold, Gold over Nickel, Gold Flash, Gold Flash over Nickel
Current Rating	7.50 A
Contact Resistance	15.0 mΩ
Current Rating (Max)	2 A
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating (Max)	250 VAC
Voltage Rating	250 V
Maximum Contact Resistance (Max)	15 mΩ
	expand all
Size-Length	14.86 mm
Size-Width	2.67 mm
Contact Material	Brass
Material	Brass
Operating Temperature	-55℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536904000
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

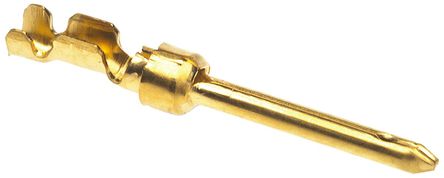

The 66506-9 from TE Connectivity is a D sub connector pin contact with contact size 20. It has a wire size range from 0.2mm² to 0.6mm² (24AWG to 20AWG). This contact is used with AMPLIMITE HDP-20, CPC connectors.
Crimp snap-in contact style
Made of gold flash over nickel plated brass material
Pin diameter of 1.02mm (0.04inch)
Wire insulation diameter from 1.27mm to 1.52mm (0.05inch to 0.06inch)
