6N134 ,Optocoupler, Optoisolator - Broadcom

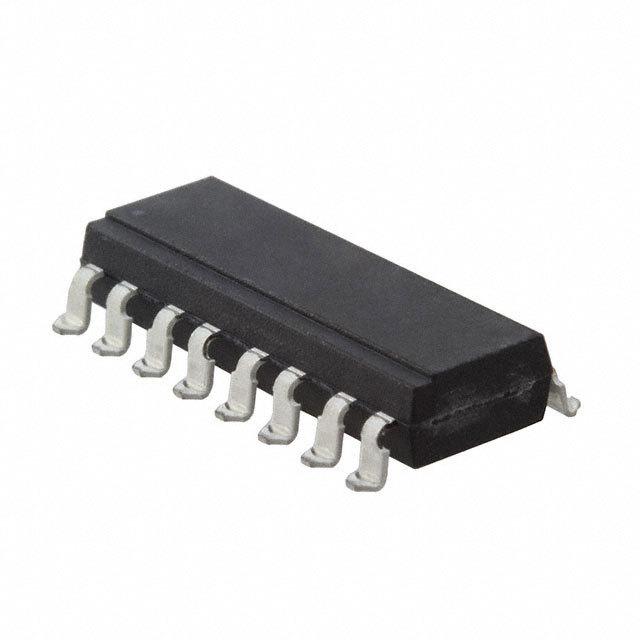

The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
66 points
-
Part No6N134
-
ManufacturerBroadcom
-
ChipWorker Part#CW23361388
-
CategoryOptocoupler, Optoisolator
-
PackageDIP-16
-
DescriptionOptocoupler Logic-Out Open Collector DC-IN 2CH 16Pin CDIP
-
DocumentationDatasheet
-
Ships fromMoscow
-
Наличие32 pcs In Stock
-
Estimated Price$ 105.39
Payment Methods and Delivery
{{ estimate }}
Buy 6N134
Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.
Real stock check
Best price from distributors
Engineer support
6N134 Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}xx
{{ low_stock_text }}
|
1 |
{{weeks_text}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
{{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
|
Chipworker
|
{{noList.partNo}}
{{noList.mfr}}
|
{{stockAvailability}}
{{ search_item }}
|
{{moq}} | 1 | 6 - 8 {{delivery_date}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
|||||||
{{ apiText }}{{ apiTime }}(UTC+8)
Update Data
Chipworker Certification
11+ years sourcing experience
1000+ russia customers
ISO certified supplier
Support small MOQ
*Photos of Our Actual 800 m² Warehouse
6N134 Specifications
Consulting Engineer >>| Attribute | Attribute Value | |
|---|---|---|
| Part Number | 6N134 | |
| Manufacturer | Broadcom | |
| ChipWorker Part# | CW23361388 | |
| Category | Optocoupler, Optoisolator | |
| Documentation | Datasheet | |
| Mounting Style | Through Hole | |
| Number of Pins | 16 Pin | |
| Case/Package | DIP-16 | |
| Rise/Fall Time | 35 ns | |
| Number of Channels | 2 Channel | |
| Forward Voltage | 1.55 V | |
| Power Dissipation | 200/chmW | |
| Isolation Voltage | 1500 VDC | |
| Forward Current | 20 mA | |
| Maximum Forward Voltage (Max) | 1.9 V | |
| Forward Current (Max) | 20 mA | |
| Fall Time (Max) | 0.04 µs | |
| Fall Time (Max) | 0.09 µs | |
| Operating Temperature (Max) | 125 ℃ | |
| Operating Temperature (Min) | -55 ℃ | |
| Supply Voltage | 4.5V ~ 5.5V | |
| expand all | ||
| Operating Temperature | -55℃ ~ 125℃ | |
| Product Lifecycle Status | Active | |
| Packaging | Tube | |
| RoHS | RoHS Compliant | |
| Lead-Free Status | Lead Free | |
| Mil-Spec | Yes |
Similar & Replacement Parts
Similar products
Product Description
- The 6N134 is a commercial grade two channel hermetically sealed optocoupler in a 16-Pin ceramic DIP package. Gold plated leads, solder dipped leads and various lead form options are also available. See the datasheet for details.
- The product is capable of operation and storage over the full military temperature range and may also be purchased with full MIL-PRF-38534 Class Level H or K testing or from the appropriate DLA Standard Microcircuit Drawing (SMD) (81028 for Class H, 5962-98001 for Class K). All devices are manufactured and tested on a MIL-PRF-38534 certified line and Classes H and K are included in the DLA Qualified Manufacturers List QML-38534 for Hybrid Microcircuits. Quad channel devices are available by special order in the 16-Pin DIP through-hole packages.
- Each channel contains a GaAsP light emitting diode which is optically coupled to an integrated high speed photon detector. The output of the detector is an open collector Schottky clamped transistor. Internal shields provide a guaranteed common mode transient immunity specification of 1000 V/μs. For Isolation Voltage applications requiring up to 2500 Vdc, the HCPL-5650 family is also available. Package styles for this die set in one, two, or four channels are 8 and 16-Pin DIP through hole, 16-Pin surface mount DIP flat pack, and 20 pad Leadless Ceramic Chip Carrier. Most devices may be purchased with a variety of lead forms and plating options. See the datasheet for details.
- Because the same electrical die (emitters and detectors) are used for each channel of each device listed in the datasheet, absolute maximum ratings, recommended operating conditions, electrical specifications, and performance characteristics shown in the datasheet figures are virtually identical for all parts. Occasional exceptions exist due to package variations and limitations and are as noted. Additionally, the same package assembly processes and materials are used in all devices. These similarities give justification for the use of data obtained from one part to represent other parts performance for reliability and certain limited radiation test results.
- ### Features
- Commercial grade, two channel, 16-Pin DIP
- Performance guaranteed from -55°C to 125°C
- High radiation immunity
- Reliability data
- MIL-PRF-38534 Class H and Class K available
- DLA Standard Microcircuit Drawing available
- Five hermetically sealed package configurations available
- One and four channel devices available (different package)
- TTL circuit compatibility
- High speed: 10MBd
- CMR: >10,000 V/μs typical
- 1500 Vdc withstand test voltage
