744025150 - Wurth Electronics

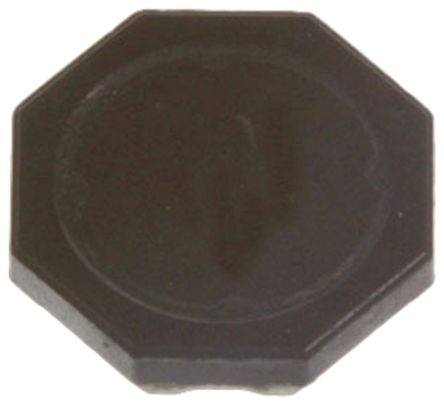

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

744025150
Manufacturer

Wurth Electronics
ChipWorker Part#

CW5012725
Category

Inductor Surface Mount
Package

2.8mm x 2.8mm x 2.8mm
Description

15uH ±20% 720mA
Documentation

Datasheet

744025150 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

744025150 Specifications

Attribute	Attribute Value

Part Number	744025150
Manufacturer	Wurth Electronics
ChipWorker Part#	CW5012725
Category	Inductor Surface Mount
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	2.8mm x 2.8mm x 2.8mm
Current Rating	720 mA
Capacitance Tolerance	±20 %
Inductance	15 µH
Self Resonant Frequency	32 MHz
Part Family	WE-TPC
Resonant Frequency	32.0 MHz
Inductance Tolerance	±20 %
Test Frequency	100 kHz
DC Resistance (DCR)	400 mΩ
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	0.4 Ω
	expand all
Size-Length	2.8 mm
Size-Width	2.8 mm
Size-Height	2.8 mm
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Product Description

The 744025150 is a surface mount shielded tiny Power Inductor with ferrite base. This WE-TPC high current capability extremely flat power inductor supports 130MHz typical self-resonant frequency and magnetic shielding of the inductor results in a low leakage field. It is recommended that the temperature of the inductor does not exceed 125°C under worst case operating conditions.
