74ABT125D - NXP

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

74ABT125D
Manufacturer

NXP
ChipWorker Part#

CW151383945
Category

Logic Controller, Logic IC
Package

SOIC
Description

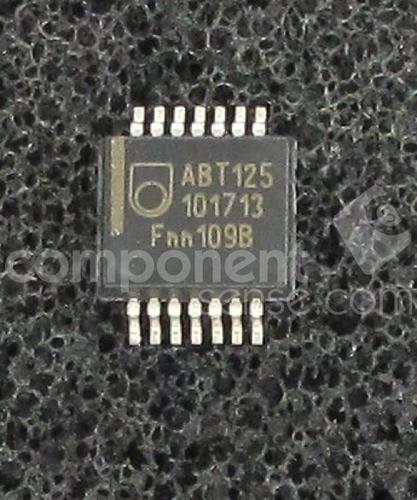

NXP 74ABT125D Buffer / Line Driver, 74ABT125, 4.5V to 5.5V, SOIC-14
Documentation

Datasheet

74ABT125D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

74ABT125D Specifications

Attribute	Attribute Value

Part Number	74ABT125D
Manufacturer	NXP
ChipWorker Part#	CW151383945
Category	Logic Controller, Logic IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC
Supply Voltage (DC)	5.00 V, 5.50 V (max)
Number of Outputs	4 Output
Number of Channels	4 Channel
Number of Positions	14 Position
Number of Bits	4 Bit
Quiescent Current	12.0 mA
Number of Gates	4 Gate
Number of Inputs	4 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The 74ABT125D is a Quad Buffer that is ideal for driving bus lines. The device features four output enable inputs (1OE, 2OE, 3OE, 4OE) each controlling one of the 3-state outputs. The 74ABT125 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.
Quad bus interface
Live insertion and extraction permitted
Power-up 3-state
Inputs are disabled during 3-state mode
Latch-up protection exceeds 500mA per JESD78 class II level A
Output capability - HIGH -32mA and LOW 64mA
