74HC4049D - NXP

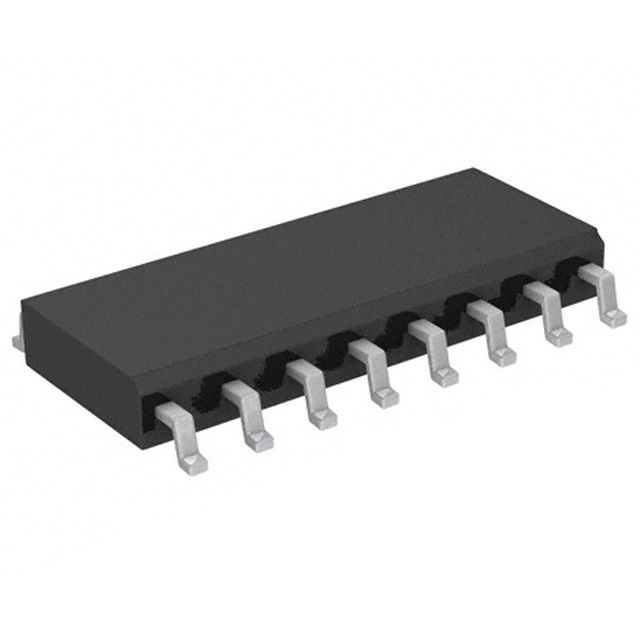

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

74HC4049D
Manufacturer

NXP
ChipWorker Part#

CW113403689
Category

Buffer Amplifier IC
RoHS

Lead free / RoHS Compliant
Description

Buffer/Converter 6CH Inverting CMOS 16Pin SO
Documentation

Datasheet

74HC4049D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

74HC4049D Specifications

Attribute	Attribute Value

Part Number	74HC4049D
Manufacturer	NXP
ChipWorker Part#	CW113403689
Category	Buffer Amplifier IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC
Number of Outputs	6 Output
Number of Channels	6 Channel
Number of Inputs	6 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.45 mm
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
