74HCT139D - NXP

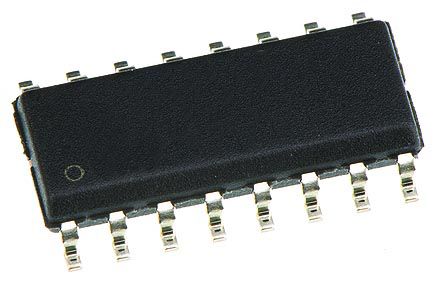

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

74HCT139D
Manufacturer

NXP
ChipWorker Part#

CW135099200
Category

Logic Control, Logic Gate IC
Package

SOIC
Description

NXP 74HCT139D Decoder / Demultiplexer, HCT Family, 2 Gate, 2Input, 8 Output, 4mA, 4.5V to 5.5V, SOIC-16
Documentation

Datasheet

74HCT139D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

74HCT139D Specifications

Attribute	Attribute Value

Part Number	74HCT139D
Manufacturer	NXP
ChipWorker Part#	CW135099200
Category	Logic Control, Logic Gate IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC
Supply Voltage (DC)	4.50V (min)
Number of Outputs	8 Output
Contacts Type	DP4T
Number of Positions	16 Position
Number of Gates	2 Gate
Number of Inputs	2 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	6.4 mm
Size-Width	5.4 mm
Size-Height	1.8 mm
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The 74HCT139D is a 2-to-4 dual Decoder/Demultiplexer decodes two binary weighted address inputs (nA0, nA1) to four mutually exclusive outputs (nY0\ to nY3\\). Each decoder features an enable input (nE\\). When nE\ is high all outputs are forced high. The enable input can be used as the data input for a 1-to-4 demultiplexer application. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Demultiplexing capability
Multifunction capability
Suitable for memory decoding, data routing or code conversion
Active low mutually exclusive outputs
TTL Input level
Complies with JEDEC standard No. 7A
