74HCT1G04GW - NXP

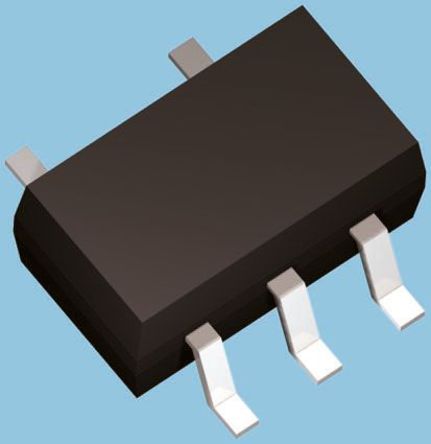

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

74HCT1G04GW
Manufacturer

NXP
ChipWorker Part#

CW128240675
Category

Logic Control, Logic Gate IC
Package

SOT-353
Description

NXP 74HCT1G04GW Inverter, 74HCT1G04, 1Input, 2mA, 4.5V to 5.5V, SOT-353-5
Documentation

Datasheet

74HCT1G04GW Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

74HCT1G04GW Specifications

Attribute	Attribute Value

Part Number	74HCT1G04GW
Manufacturer	NXP
ChipWorker Part#	CW128240675
Category	Logic Control, Logic Gate IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-353
Supply Voltage (DC)	4.50V (min)
Output Current	2 mA
Number of Positions	5 Position
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	2.25 mm
Size-Width	1.35 mm
Size-Height	1 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The 74HCT1G04GW is a single Inverter with TTL input switching levels. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC. The device features symmetrical output impedance and high noise immunity.
Low power dissipation
Balanced propagation delays
ESD protection - HBM JESD22-A114E exceeds 2000V, MM JESD22-A115-A exceeds 200V
