74VHC14MTC - Fairchild

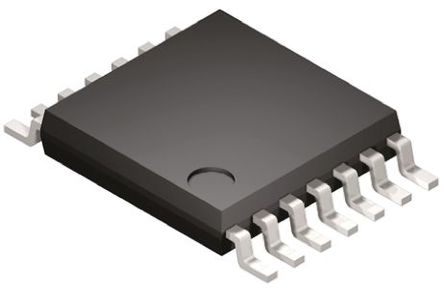

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

74VHC14MTC
Manufacturer

Fairchild
ChipWorker Part#

CW5708267
Category

Logic Control, Logic Gate IC
Package

TSSOP-14
Description

FAIRCHILD SEMICONDUCTOR 74VHC14MTC Inverter, Schmitt Trigger, 74VHC14, 1Input, 8mA, 2V to 5.5V, TSSOP-14
Documentation

Datasheet

74VHC14MTC Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

74VHC14MTC Specifications

Attribute	Attribute Value

Part Number	74VHC14MTC
Manufacturer	Fairchild
ChipWorker Part#	CW5708267
Category	Logic Control, Logic Gate IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Supply Voltage (DC)	2.00V (min)
Output Current	8 mA
Number of Circuits	6 Circuit
Number of Positions	14 Position
Number of Gates	6 Gate
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2 V
	expand all
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Rail
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

Now you can convert a noisy, analog signal into a clean, digital signal with ease using Fairchild Semiconductor"s 74VHC14MTC inverting Schmitt trigger! With a Schmitt trigger output, this is power management at its best. This inverting Schmitt trigger has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product comes in rail packaging to keep individual parts separated and protected. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
