790347 - TE Connectivity

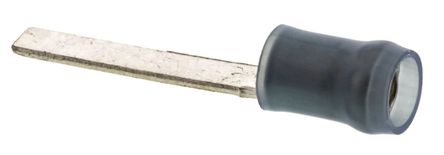

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

790347
Manufacturer

TE Connectivity
ChipWorker Part#

CW88773133
Category

Terminal
Description

AMP - TE CONNECTIVITY 790347 Blade Terminal, 17AWG, 13AWG, 2.5mm², Blue, Nylon (Polyamide)
Documentation

Datasheet

790347 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

790347 Specifications

Attribute	Attribute Value

Part Number	790347
Manufacturer	TE Connectivity
ChipWorker Part#	CW88773133
Category	Terminal
Documentation	Datasheet
Gender	Male
Wire Gauge	13AWG ~ 17AWG
Contact Plating	Tin
	expand all
Size-Length	29.90 mm
Size-Inner Diameter	4.4 mm
Color	Blue
Contact Material	Copper
Material	Copper
Insulation Material	Nylon
Product Lifecycle Status	Superseded
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC

Product Description

The 790347 is a blue straight blade-tongue Insulated Crimp Terminal with tin-plated contact. The PIDG series terminal has nylon insulator and accepts 17 to 13AWG wire size.
