AD1953YSTZ - ADI

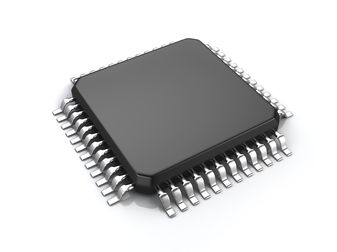

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD1953YSTZ
Manufacturer

ADI
ChipWorker Part#

CW41856369
Category

Digital to Analog, DAC IC
Package

LQFP-48
Description

DAC 3CH Delta-Sigma 24Bit 48Pin LQFP
Documentation

Datasheet

AD1953YSTZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD1953YSTZ Specifications

Attribute	Attribute Value

Part Number	AD1953YSTZ
Manufacturer	ADI
ChipWorker Part#	CW41856369
Category	Digital to Analog, DAC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	LQFP-48
Number of Outputs	3 Output
Supply Current	80.0 mA
Number of Channels	3 Channel
Number of Bits	26 Bit
Sample Rate	48 ksps
Resolution (Bits)	24.0 Bit
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	540 mW
Supply Voltage	5 V
	expand all
Size-Height	1.4 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

DAC, Audio 26 b 48kHz DSP, I²S, SPI 48-LQFP (7x7)
