AD526AD - ADI

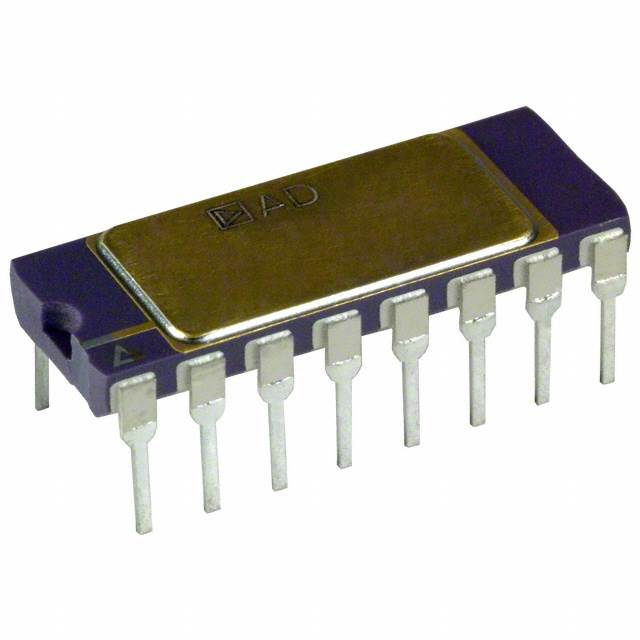

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD526AD
Manufacturer

ADI
ChipWorker Part#

CW29127189
Category

Amplifier, Buffer IC
Package

CDIP-16
Description

IC OPAMP PGA 4MHz 16CDIP
Documentation

Datasheet

AD526AD Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

AD526AD Specifications

Attribute	Attribute Value

Part Number	AD526AD
Manufacturer	ADI
ChipWorker Part#	CW29127189
Category	Amplifier, Buffer IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	CDIP-16
Supply Voltage (DC)	15.0 V
Supply Current	10 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Bandwidth	100 kHz
Slew Rate	24.0 V/μs
Input Offset Voltage	250 µV
Input Bias Current	50 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	4 MHz
Supply Voltage (Max)	30V ~ 50V
	expand all
Size-Height	3.56 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC

Product Description

PRODUCT DESCRIPTION
The AD526 is a single-ended, monolithic software program mable gain amplifier (SPGA) that provides gains of 1, 2, 4, 8 and 16. It is complete, including amplifier, resistor network and TTL-compatible latched inputs, and requires no external components.
Low gain error and low nonlinearity make the AD526 ideal for precision instrumentation applications requiring programmable gain. The small signal bandwidth is 350 kHz at a gain of 16. In addition, the AD526 provides excellent dc precision. The FET input stage results in a low bias current of 50 pA. A guaranteed maximum input offset voltage of 0.5 mV max (C grade) and low gain error (0.01%, G = 1, 2, 4, C grade) are accomplished using Analog Devices’ laser trimming technology.
FEATURES
Digitally Programmable Binary Gains from 1 to 16
Two-Chip Cascade Mode Achieves Binary Gain from 1 to 256
Gain Error:
0.01% Max, Gain = 1, 2, 4 (C Grade)
0.02% Max, Gain = 8, 16 (C Grade)
0.5 ppm/8C Drift Over Temperature
Fast Settling Time
10 V Signal Change:
0.01% in 4.5 ms (Gain = 16)
Gain Change:
0.01% in 5.6 ms (Gain = 16)
Low Nonlinearity: 60.005% FSR Max (J Grade)
Excellent DC Accuracy:
Offset Voltage: 0.5 mV Max (C Grade)
Offset Voltage Drift: 3 mV/8C (C Grade)
TTL-Compatible Digital Inputs
APPLICATION HIGHLIGHTS
1\. Dynamic Range Extension for ADC Systems: A single AD526 in conjunction with a 12-bit ADC can provide 96 dB of dynamic range for ADC systems.
2\. Gain Ranging Preamps: The AD526 offers complete digital gain control with precise gains in binary steps from 1 to 16. Additional gains of 32, 64, 128 and 256 are possible by cas cading two AD526s.
