AD5302BRMZ - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD5302BRMZ
Manufacturer

ADI
ChipWorker Part#

CW678600
Category

Digital to Analog, DAC IC
Package

MSOP-10
Description

ANALOG DEVICES AD5302BRMZ Digital to Analogue Converter, Dual, 8Bit, Serial, 2.5V to 5.5V, MSOP, 10Pins
Documentation

Datasheet

AD5302BRMZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD5302BRMZ Specifications

Attribute	Attribute Value

Part Number	AD5302BRMZ
Manufacturer	ADI
ChipWorker Part#	CW678600
Category	Digital to Analog, DAC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	MSOP-10
Number of Outputs	2 Output
Supply Current	300 µA
Number of Channels	2 Channel
Number of Positions	10 Position
Number of Bits	8 Bit
Power Dissipation	0.0025 W
Sample Rate	167 ksps
Resolution (Bits)	8.0 Bit
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2.5 mW
Number of DACs	2 DAC
Supply Voltage	2.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.5 V
	expand all
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17

Product Description

Product Details

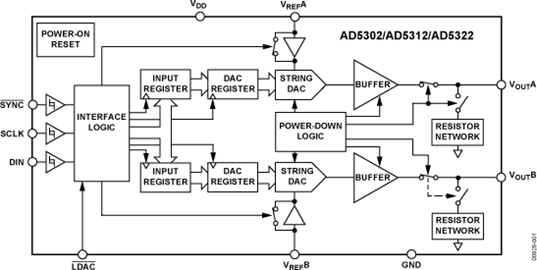

The AD5302/AD5312/AD5322 are dual 8-, 10- and 12-bit buffered voltage output DACs in a 10-lead mSOIC package that operate from a single +2.5 V to +5.5 V supply consuming 230 mA at 3 V. Their on-chip output amplifiers allow the outputs to swing rail-to-rail with a slew rate of 0.7 V/ms. The AD5302/AD5312/AD5322 utilize a versatile 3-wire serial interface which operates at clock rates up to 30 MHz and is compatible with standard SPI™, QSPI™, MICROWIRE™ and DSP interface standards.
**Product Highlights**
Available in 10-lead MicroSOIC packages.
Low power, single supply operation from 2.5 V to 5.5 V supply
Consumes 0.7mW at 3 V and 1.5 mW at 5 V
DNL of less than 0.25 LSB.
Rail-to-Rail output with a slew rate of 0.7 V/µs
Utilizes a versatile 3-wire serial interface with clock rates up to 30 MHz
Pin and Software Compatible with the AD5312 (10-Bit) and the AD5322 (12-bit)
### Features and Benefits
Two 8-Bit DACS in one package
Micropower: 300 µA @ 5 V (including Reference Current)
Power-Down to 200 nA @ 5 V, 50nA @ 3 V
Guaranteed Monotonic by Design
Power-On-Reset to Zero Volts
Buffered/Unbuffered Reference Input Options
O-VREF Output Voltage
Low Power,SPI™, QSPI™, MICROWIRE™ and DSP-Compatible 3-Wire Serial Interface
Output Buffer Amplifiers with Rail-to-Rail Operation Simultaneous Update of DAC Outputs via LDAC pin (active low)
Temperature Range:
-40°C to 105°C
Three Power-Down Functions
