AD5755ACPZ - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD5755ACPZ
Manufacturer

ADI
ChipWorker Part#

CW1200208
Category

Digital to Analog, DAC IC
Package

LFCSP-64
Description

ANALOG DEVICES AD5755ACPZ Digital to Analogue Converter, 16Bit, Serial, 4.5V to 5.5V, LFCSP, 64Pins
Documentation

Datasheet

AD5755ACPZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD5755ACPZ Specifications

Attribute	Attribute Value

Part Number	AD5755ACPZ
Manufacturer	ADI
ChipWorker Part#	CW1200208
Category	Digital to Analog, DAC IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	LFCSP-64
Number of Outputs	8 Output
Supply Current	9.20 mA
Number of Channels	4 Channel
Number of Positions	64 Position
Number of Bits	16 Bit
Power Dissipation	173 mW
Resolution (Bits)	16.0 Bit
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	173 mW
Number of DACs	4 DAC
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	expand all
Size-Length	9.1 mm
Size-Width	9.1 mm
Size-Height	0.8 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

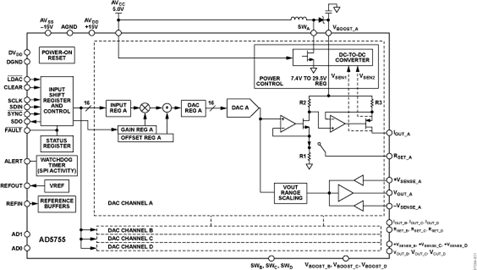

GENERAL DESCRIPTION
The AD5755/AD5735 is a quad, voltage and current output DAC, which operates with a power supply range from -26v to +33v. On chip dynamic power control minimizes package power dissipation in current mode. This is achieved by regulating the voltage on the output driver from between 7V-30V.
FEATURES
16/12-Bit Resolution and Monotonicity
Dynamic Power Control for Thermal Management
Voltage or Current Output on the Same Pin
IOUT Range: 0mA-20mA, 4mA–20mA or 0mA–24mA ±0.05% Total Unadjusted Error (TUE) Max
VOUT Range: 0-5V, 0-10V, ±5V, ±10V,±6V,±12V ±0.04% Total Unadjusted Error (TUE) Max
User programmable Offset and Gain
On Chip Diagnostics
On-Chip Reference (±5 ppm/°C)
−40°C to +105°C Temperature Range
APPLICATIONS
Process Control
Actuator Control
PLC’s

expand all
