AD592 - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

44 points

Part No

AD592
Manufacturer

ADI
ChipWorker Part#

CW389435551
Description

Current Output Precision IC Temperature Transducer
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

Price on Request

Buy AD592

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AD592 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AD592 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AD592
Manufacturer	ADI
ChipWorker Part#	CW389435551
Documentation	Datasheet
	expand all
Product Lifecycle Status	Active

Similar & Replacement Parts

Similar products

Product Description

Product Details
The AD592 is a two terminal monolithic integrated circuit temperature transducer that provides an output current proportional to absolute temperature. For a wide range of supply voltages the transducer acts as a high impedance temperature dependent current source of 1 µA/K. Improved design and laser wafer trimming of the IC"s thin film resistors allows the AD592 to achieve absolute accuracy levels and nonlinearity errors previously unattainable at a comparable price.
The AD592 can be employed in applications between −25°C and +105°C where conventional temperature sensors (i.e., thermistor, RTD, thermocouple, diode) are currently being used. The inherent low cost of a monolithic integrated circuit in a plastic package, combined with a low total parts count in any given application, make the AD592 the most cost effective temperature transducer currently available. Expensive linearization circuitry, precision voltage references, bridge components, resistance measuring circuitry and cold junction compensation are not required with the AD592.
Typical application areas include: appliance temperature sensing, automotive temperature measurement and control, HVAC (heating/ventilating/air conditioning) system monitoring, industrial temperature control, thermocouple cold junction compensation, board-level electronics temperature diagnostics, temperature readout options in instrumentation, and temperature correction circuitry for precision electronics. Particularly useful in remote sensing applications, the AD592 is immune to voltage drops and voltage noise over long lines due to its high impedance current output. AD592s can easily be multiplexed; the signal current can be switched by a CMOS multiplexer or the supply voltage can be enabled with a tri-state logic gate.

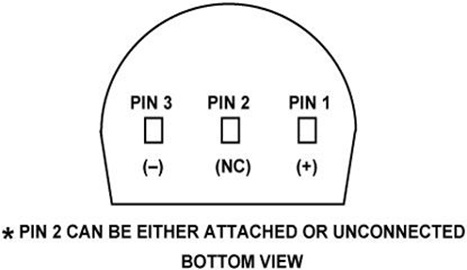

The AD592 is available in three performance grades: the AD592AN, AD592BN and AD592CN. All devices are packaged in a plastic TO-92 case rated from −45°C to +125°C. Performance is specified from −25°C to +105°C. AD592 chips are also available, contact the factory for details.
### Features and Benefits
High Precalibrated Accuracy: 0.5°C max @ +25°C
Excellent Linearity: 0.15°C max
(0°C to +70°C)
Wide Operating Temperature Range: −25°C to +105°C
Single Supply Operation:
+4 V to +30 V
Excellent Repeatability and Stability
High Level Output: 1 µA/K
Two Terminal Monolithic IC: Temperature In/Current Out
Minimal Self-Heating Errors
