AD597AHZ - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD597AHZ
Manufacturer

ADI
ChipWorker Part#

CW681185
Category

Temperature Sensor
Package

TO-100-10
Description

ANALOG DEVICES AD597AHZ Signal Conditioner, 15kHz, 5V, 30V, SOIC, 10Pins, -55℃
Documentation

Datasheet

AD597AHZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD597AHZ Specifications

Attribute	Attribute Value

Part Number	AD597AHZ
Manufacturer	ADI
ChipWorker Part#	CW681185
Category	Temperature Sensor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	10 Pin
Case/Package	TO-100-10
Supply Voltage (DC)	5.00V (min)
Output Voltage	28 V
Output Current	5 mA
Supply Current	160 µA
Number of Positions	10 Position
Bandwidth	15 kHz
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Accuracy	±4℃ (Max)
Supply Voltage	5V ~ 30V
Supply Voltage (Max)	30 V
Supply Voltage (Min)	5 V
	expand all
Size-Length	9.4 mm
Size-Width	9.4 mm
Size-Height	4.7 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

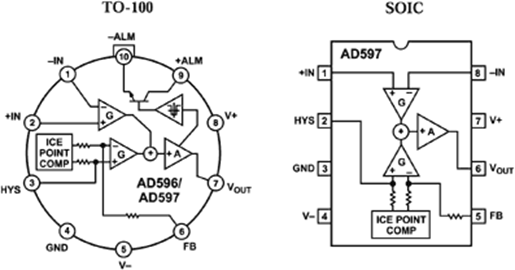

Product Description

The AD597AHZ is a monolithic temperature Setpoint Controller which has been optimized for use at elevated temperatures such as those found in oven control applications. The device cold junction compensates and amplifies a type J or K thermocouple input to derive an internal signal proportional to temperature. The internal signal is then compared with an externally applied setpoint voltage to yield a low impedance switched output voltage. Dead-Band or switching hysteresis can be programmed using a single external resistor. Alternately, the AD597 can be configured to provide a voltage output (10mV/°C) directly from a type J or K thermocouple signal. It can also be used as a stand-alone voltage output temperature sensor. The AD597 can be powered with a single supply from +5 to +30V or dual supplies up to a total span of 36V. Typical quiescent supply current is 160µA which minimizes self-heating errors.
Built-in ice point compensation
On/off temperature setpoint operation
Programmable switching hysteresis
High impedance differential input
10mV/°C Temperature proportional operation

expand all
