AD7533JN - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD7533JN
Manufacturer

ADI
ChipWorker Part#

CW23614832
Category

Digital to Analog, DAC IC
Package

DIP-16
Description

DAC 1CH Segment 10Bit 16Pin PDIP N Tube
Documentation

Datasheet

AD7533JN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD7533JN Specifications

Attribute	Attribute Value

Part Number	AD7533JN
Manufacturer	ADI
ChipWorker Part#	CW23614832
Category	Digital to Analog, DAC IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Supply Voltage (DC)	15.0V (max)
Number of Outputs	1 Output
Number of Channels	1 Channel
Number of Bits	10 Bit
Power Dissipation	30 mW
Sample Rate	1.7 Msps
Resolution (Bits)	10.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	450 mW
Number of DACs	1 DAC
Supply Voltage (Max)	16.5 V
Supply Voltage (Min)	5 V
	expand all
Size-Height	3.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
Mil-Spec	Yes

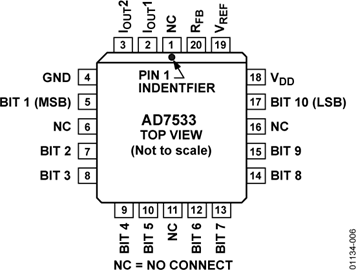

Product Description

Product Details
The AD7533 is a low cost, 10-bit, 4-quadrant multiplying DAC manufactured using an advanced thin-film-on-monolithic-CMOS wafer fabrication process.
Pin and function equivalent to the AD7520 industry standard, the AD7533 is recommended as a lower cost alternative for old AD7520 sockets or new 10-bit DAC designs.
AD7533 application flexibility is demonstrated by its ability to interface to TTL or CMOS, operate on 5 V to 15 V power, and provide proper binary scaling for reference inputs of either positive or negative polarity.
**APPLICATIONS**
Digitally controlled attenuators
Programmable gain amplifiers
Function generation
Linear automatic gain controls
### Features and Benefits
Low cost 10-bit DAC
Low cost AD7520 replacement
Linearity: ½ LSB, 1 LSB, or 2 LSB
Low power dissipation
Full 4-quadrant multiplying DAC
CMOS/TTL direct interface
Latch free (protection Schottky not required)
Endpoint linearity
