AD7606BSTZ-4RL ,DA Converter, AD Converter IC - ADI

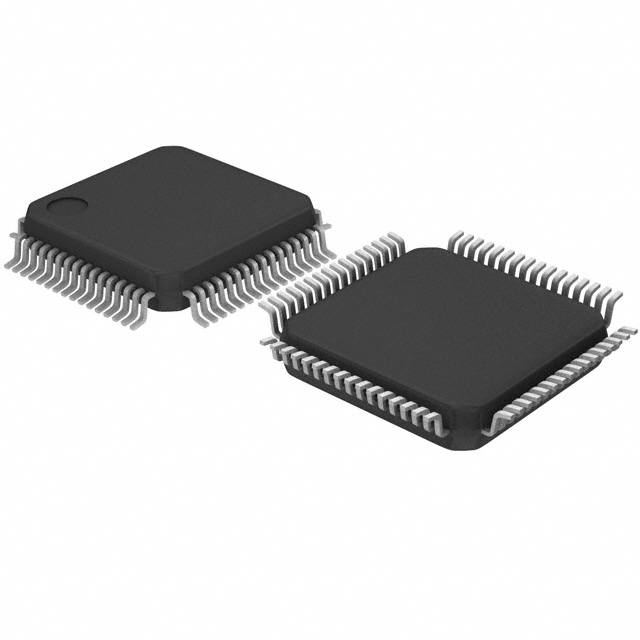

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

157 points

Part No

AD7606BSTZ-4RL
Manufacturer

ADI
ChipWorker Part#

CW1254026
Category

DA Converter, AD Converter IC
Package

LQFP-64
Description

Octal Channel Single ADC SAR 200KSPS 16Bit Parallel/Serial 64Pin LQFP T/R
Documentation

Datasheet
Ships from

Moscow
Наличие

87 pcs In Stock
Estimated Price

$ 10.1

Buy AD7606BSTZ-4RL

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AD7606BSTZ-4RL Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AD7606BSTZ-4RL Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AD7606BSTZ-4RL
Manufacturer	ADI
ChipWorker Part#	CW1254026
Category	DA Converter, AD Converter IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	LQFP-64
Number of Channels	4 Channel
Power Dissipation	75 mW
Sample Rate	200 ksps
Resolution (Bits)	16.0 Bit
Input Capacitance	5.00 pF
Number of ADCs	1 ADC
Number of Inputs	4 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	111 mW
Number of Input Channels	8 Channel
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
Mil-Spec	No

Similar & Replacement Parts

Similar products

Product Description

Product Details
The AD7606-4 is a 16-bit, 4 channel, simultaneous sampling Analog-to-Digital Data Acquisition system (DAS). The parts contains analog input clamp protection, 2nd order anti-alias filter, track and hold amplifier, 16-bit charge redistribution successive approximation ADC, flexible digital filter, 2.5V reference and reference buffer and high speed serial and parallel interfaces.
The AD7606-4 operates from a single 5V supply and can accommodate ± 10V and ±5V true bipolar input signals while sampling at throughput rates up to 200 kSPS for all channels. The input clamp protection circuitry can tolerate voltages up to ±16.5V. The single supply operation, on chip filtering and high input impedance eliminates the need for driver op-amps and external bipolar supplies. The AD7606-4 anti-alias filter has a 3 dB cut off frequency of 22 kHz and provides 40 dB anti-alias rejection when sampling at 200ksps. The flexible digital filter is pin driven, yields improvements in SNR, and reduces the 3 dB bandwidth.
**Applications**
Power line monitoring and protection systems
Multiphase Motor Control
Instrumentation and control systems
Multi-axis positioning systems
Data Acquisition Systems
### Features and Benefits
4 Simultaneously Sampled Inputs
True bipolar analog input ranges: ±10 V, ±5 V
Single 5V Analog Supply, 2.3V to +5V VDRIVE
Analog Input Clamp Protection
2nd Order Anti-alias Analog Filter
Fast throughput rate: 200 kSPS for all channels
Over-sampling capability with digital filter,
e.g. 96dB SNR at 50ksps
90dB SNR at 200ksps
Low power: 80 mW at 200 kSPS, 10 mW per channel
On-chip accurate reference and reference buffer
Please see data sheet for additional features

expand all
